Remote Control Commands
R&S
®
NRPxxS(N)
98User Manual 1177.5079.02 ─ 10
Trigger level
Power
Time
Trigger event
SENS:TSLOT:WIDTH
SENS:TSLOT:MID:OFFS:TIME
SENS:TSLOT:MID:TIME
T'Slot 1 T'Slot 2 T'Slot 3
SENS:TSLOT:COUNT 3

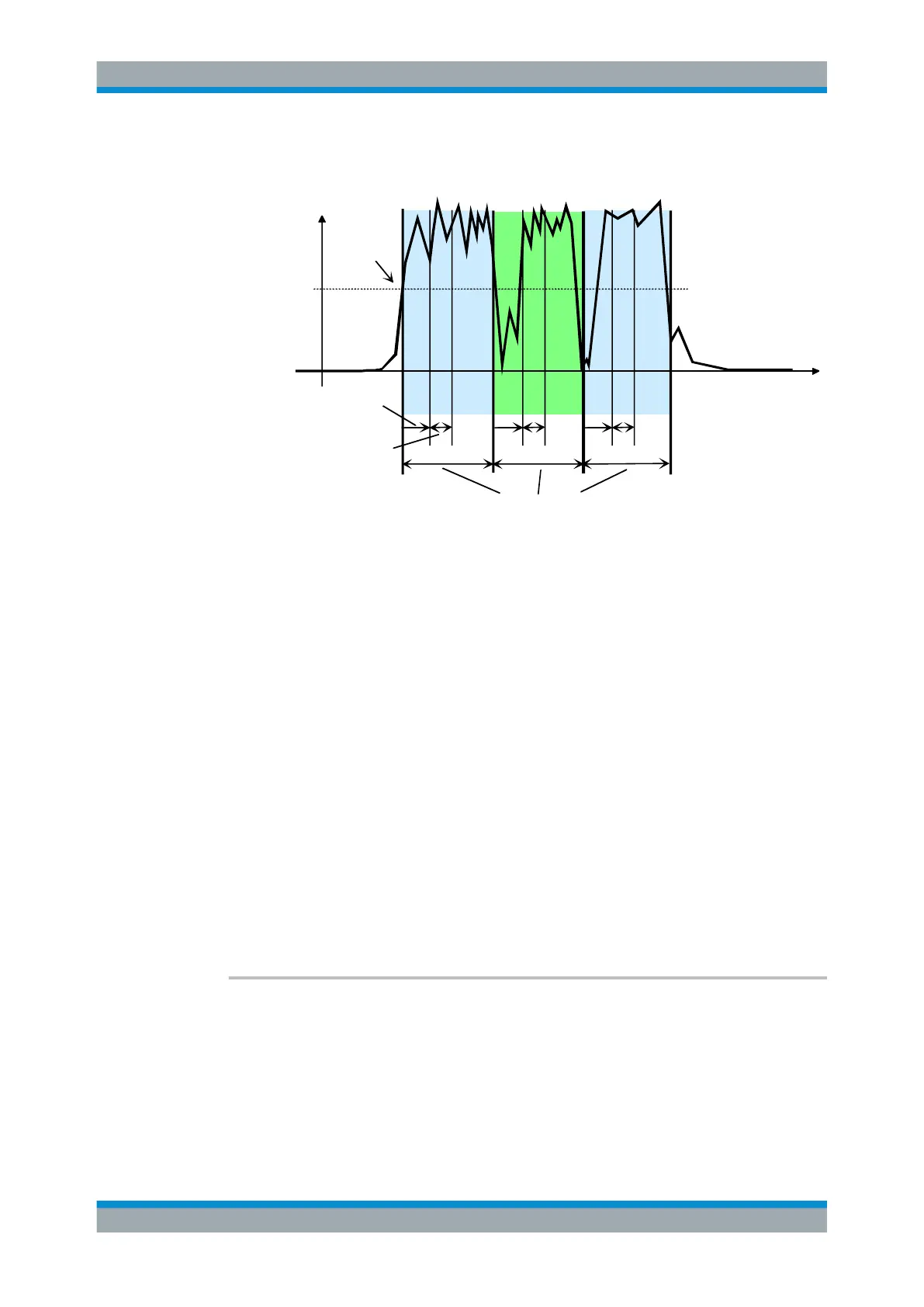

Figure 9-3: Timeslot parameters
Triggering a timeslot average measurement
In the timeslot mode, internal and external trigger events from the signal are evaluated
depending on the settings of the TRIGger:SOURce parameter. It is essential to define
the TRIGger:DELay parameter to ensure that the beginning of the first slot to be mea-
sured coincides with the delayed trigger point.
Defining a time interval for the measurement
Additionally, time intervals that are to be excluded from the measurement can be set at
the beginning and at the end of the measurement interval, with the commands
[SENSe<Sensor>:]TIMing:EXCLude:STARt and [SENSe<Sensor>:]TIMing:
EXCLude:STOP, see Chapter 9.8.3, "Setting Exclusion Time", on page 109.
Remote commands:
[SENSe<Sensor>:][POWer:]TSLot[:AVG]:COUNt................................................................ 98
[SENSe<Sensor>:][POWer:]TSLot[:AVG]:WIDTh.................................................................99
[SENSe<Sensor>:][POWer:]TSLot[:AVG][:EXCLude]:MID:OFFSet[:TIME]..............................99
[SENSe<Sensor>:][POWer:]TSLot[:AVG][:EXCLude]:MID:TIME............................................99
[SENSe<Sensor>:][POWer:]TSLot[:AVG][:EXCLude]:MID[:STATe]........................................ 99
[SENSe<Sensor>:][POWer:]TSLot[:AVG]:COUNt <count>
Sets the number of simultaneously measured timeslots in the timeslot mode (see Fig-
ure 9-3).
Parameters:
<count> Range: 1 to 128
*RST: 8
Configuring the Measurement Modes
