Chapter 7: MCD-LED Display's OSD Menu
58

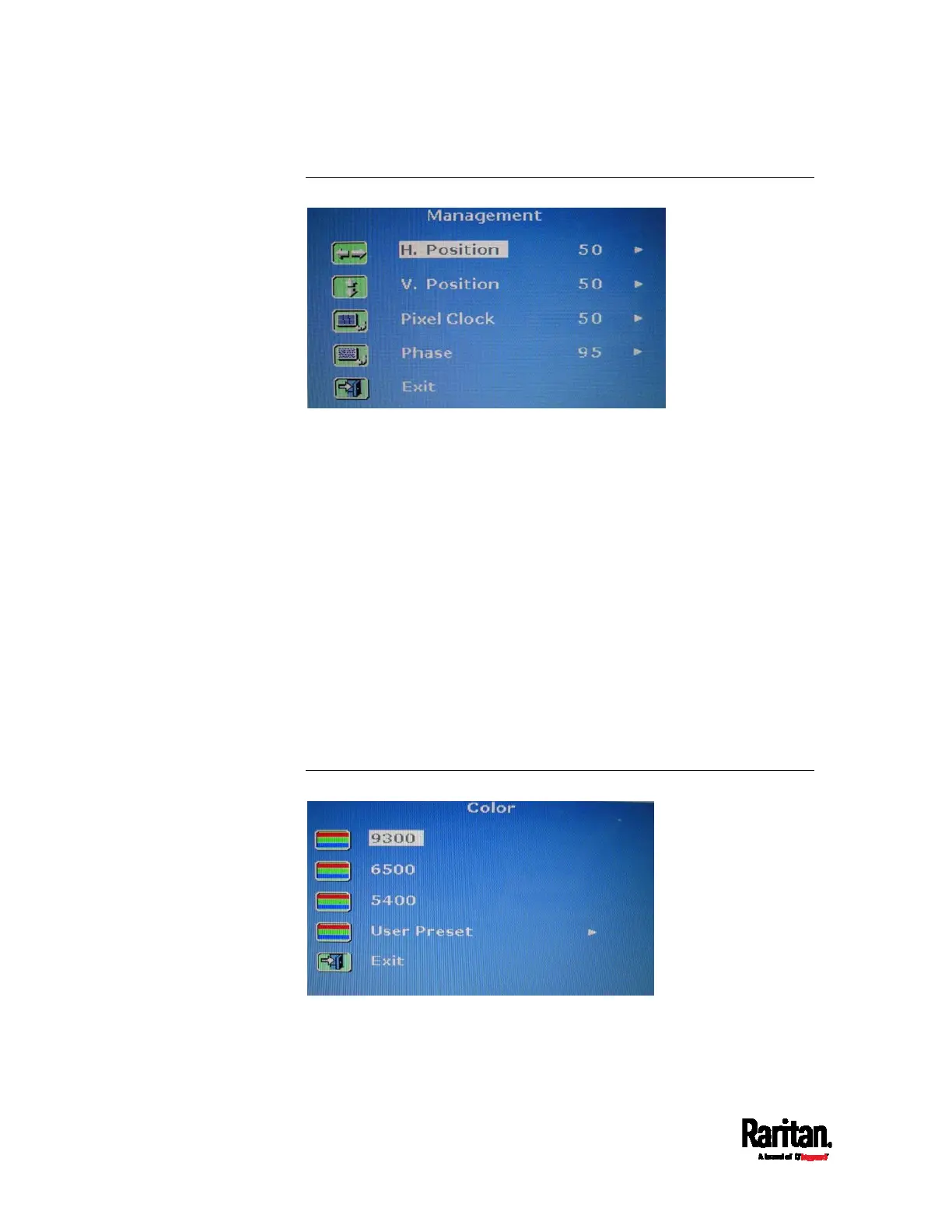

Management
H. Position:
Move the screen image left or right.
V. Position:
Move the screen image up or down.
Pixel Clock:
Adjust the clock/pitch to synchronize the sampling clock of the LED
display with the pixel clock of the connected equipment. This
adjustment is needed only for VGA signals when Auto Tune does not
get the optimum video performance and vertical dark bands are
visible on the screen.
Phase:
Adjust the phase to synchronize the frequency settings of the LED
display with the frequency output of the connected equipment.
Perform this adjustment only when horizontal streaking is seen on
the screen.
Color
Select the screen color temperatures. The factory default is 6500K.
9300:
Add blue to the screen image, making the white cooler.
