Raritan MCD-LED17 series User Manual

Chapter 7: MCD-LED Display's OSD Menu
59
 6500:
Add red to the screen image, making the white warmer.
 5400:
Add green to the screen image, making the white cooler.
 User Preset:
Adjust red, green and blue colors respectively.

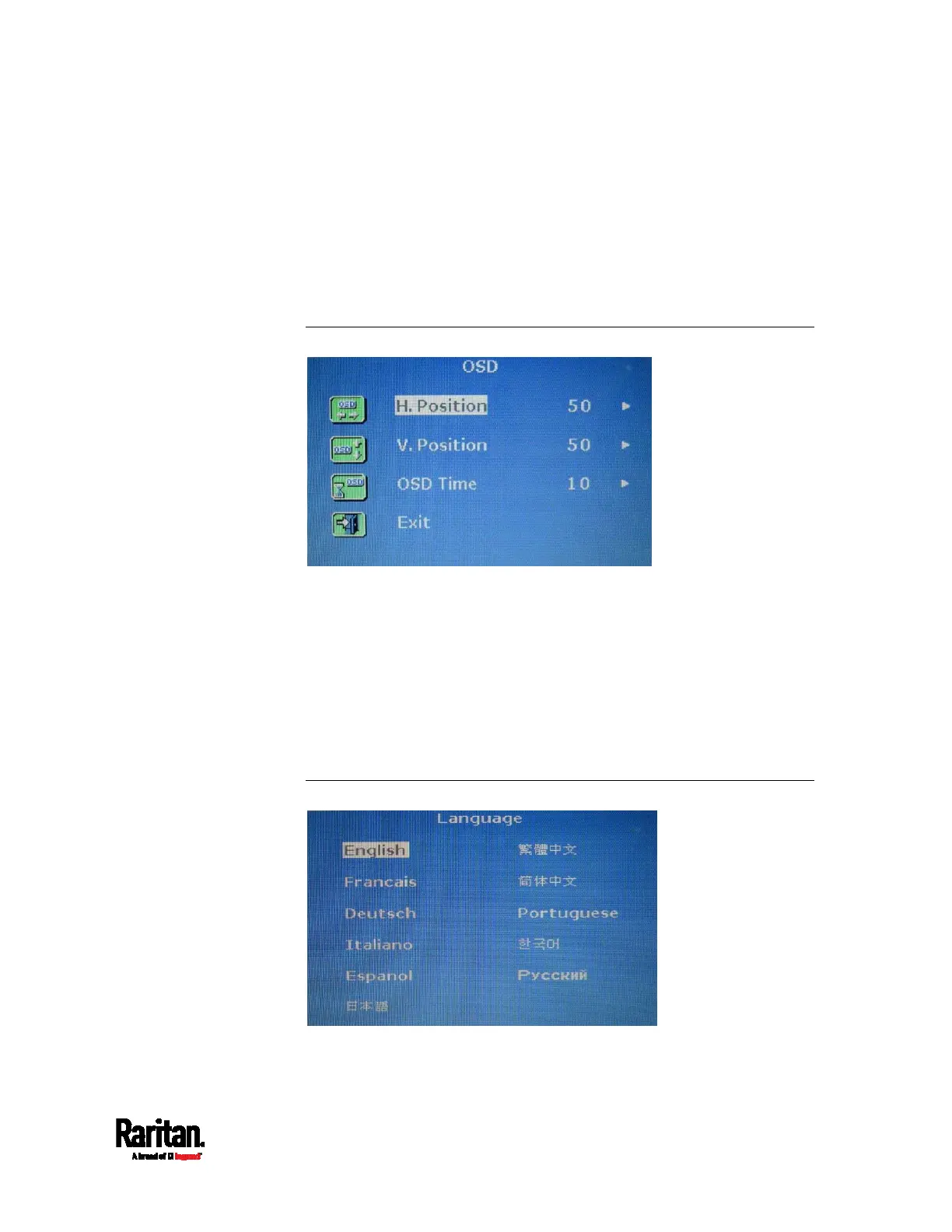

OSD
 H. Position:
Adjust the horizontal position of the 'LED OSD'.
 V. Position:
Adjust the vertical position of the 'LED OSD'.
 OSD Time:
Set the time duration in seconds for which the 'LED OSD' remains
visible after the last button is pressed. The factory default is 10
seconds.
Language

Raritan MCD-LED17 series Specifications

General

Power over Ethernet (PoE)	No
Screen Size	17 in
Resolution	1280 x 1024
Video Input	VGA
Port Type	USB, PS/2, VGA, DVI
Mounting	Rack-mountable
Mounting Type	Rack mountable
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 60°C
Power Supply	100-240V AC, 50-60Hz
Model	MCD-LED17 series
