Graphwidgets

The[Graph(horizontal)]and[Graph(vertical)]widgetoptionsprovidetwo

graphicalviewswhichautomaticallyupdatetoshowthechangingvaluesand

trendsovertimeforthewidgetthatyouhaveselected.Boththe[Graph

(horizontal)]and[Graph(vertical]widgetscanbefurthercustomizedtosuit

yourpreference

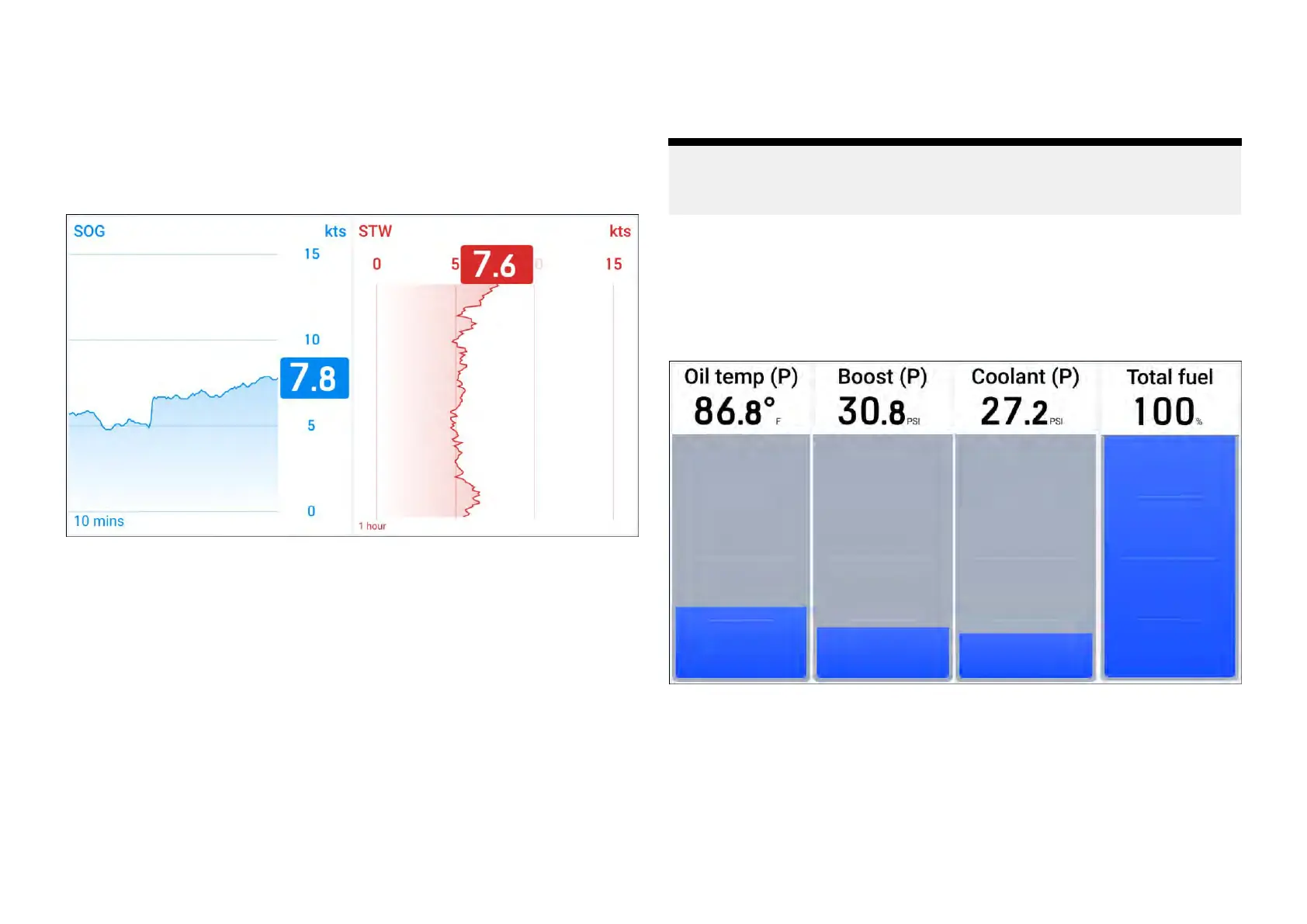

Example:Graphwidgets(horizontalandvertical)

Graphwidgetoptions

Y oucantap-holdawidgetandselect[...]todisplayadditionalwidgetoptions

whicharespeciﬁctotheselectedwidgettype.

Thefollowingwidgetoptionsareavailable:

•[Editdata]—replacestheselectedwidgetwithanotherchosenfromthe

[Selectdatacategory]sub-menus.Thenewwidgetwilladoptthesame

positionanddimensionsasthepreviouswidget.

•[Delete]—deletestheselectedwidget.

•[Graphcolour]—opensamenuwithselectablecolorpalettes,whichcan

beusedtochangetheselectedwidget’scolor.Thesamecolorcanbe

appliedtoduplicateversionsofthesamewidget,byusingthe[Applytoall

widgetgraphs]tickboxlocatedunderneaththecolorpalettes.

•[Timescale]—changestheselectedwidget’stimescalebetween:[1min],

[10mins],[1hour],[12hours],[24hours].

•[Texttitle]—opensamenuwithwidgettitlesizeoptions,whichcanbe

usedtochangetheselectedwidget’stitlesizebetween:[Large],[Medium]

and[Small].

Note:

Formoreinformationonhowtoedityourwidgets,refertothefollowing

section:p

.32—Widgetcustomization

evelwidgets

The[Level]widgetoptionprovidesaverticalbarindicatorwhichraisesor

lowerstoreﬂectthelivestateofthedataitemthatyouhaveselected.The

[Level]widgetcanbefurthermovedandresizedtosuityourpreference.

Example:Levelwidgets
