Raymarine RAY91 - Cable Shielding; Connections to Other Equipment; Dust Caps; Bare End Wire Connections

•Alwaysmak
esurethatPC’sorothersensitiveelectronicdeviceshaveadedicatedpowercircuit.
Cableshielding
Ensurethatcableshieldingisnotdamagedduringinstallationandthatallcablesareproperly
shielded.
Connectionstootherequipment
Requirementforferritesonnon-Raymarinecables
IfyourRaymarineequipmentistobeconnectedtootherequipmentusingacablenotsuppliedby
Raymarine,asuppressionferriteMUSTalwaysbeattachedtothecableneartheRaymarineunit.
Dustcaps
Topreventpotentialwateringress,connectorsnotinuseshouldbeprotectedusingthesupplied
dustcaps.
Bareendwireconnections
Y ourproductissuppliedwithbareendwireconnections.Y oumustensurethatALLbareendwires
areadequatelyprotectedfromshortcircuitandwateringress.
Bareendedwireconnections
Itisrecommendedthatbareendedwireconnectionsaremadebysolderingorusingcrimp
connectorsandthenprotectedbywrappingtheconnectionininsulationtape.
Unusedbareendedwires
Anyunusedbareendedwiresshouldbefoldedbackandwrappedininsulationtape.

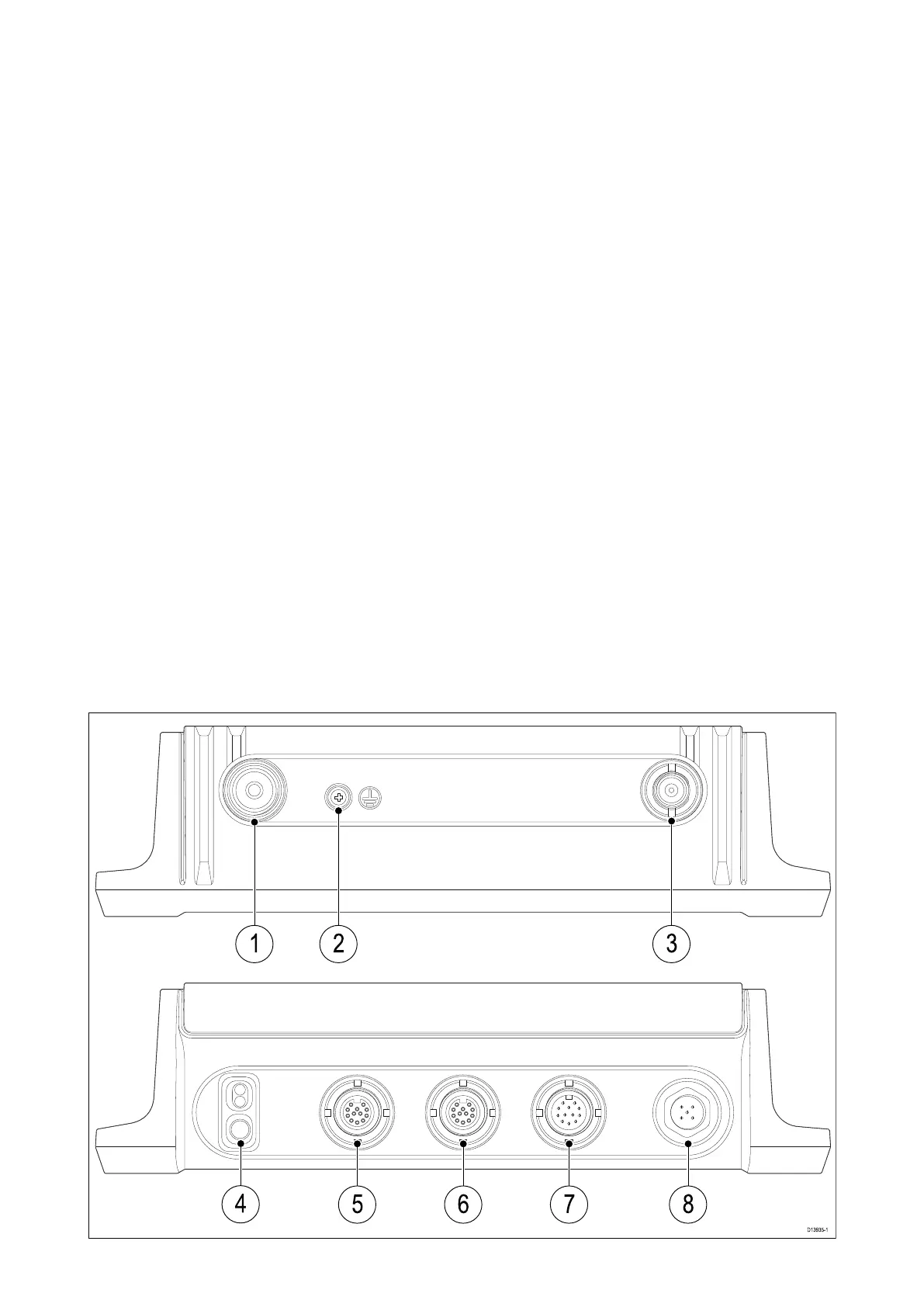

4.2Connectionsoverview
Cablesandconnections49
