Raymarine RAY91 - Wired Handset Mounting Using the Holster

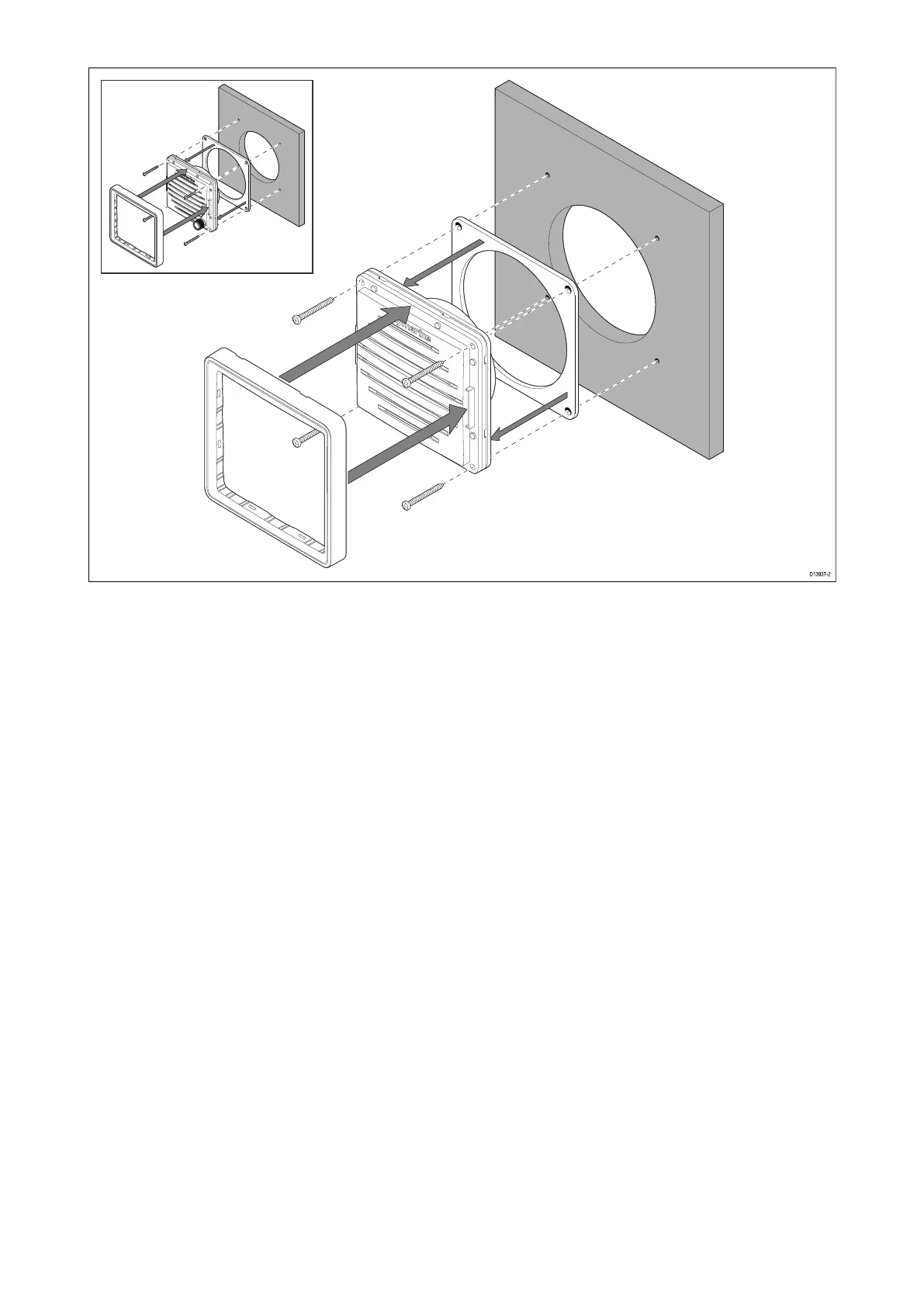

1.R emovethespeaker’sbezel.
2.Usingthesuppliedmountingtemplate,markthelocationofthecutoutandfixingholesonthe
mountingsurface.
3.Usinga89mm(3½in)holesaw,drilloutthecentrecutoutareaindicatedonthemounting
template.
4.Drillholesforthefixings,usingadrillwithasuitablesizedbit.
5.Ensurethattheunitfitsintotheremovedareaandthenfilearoundthecutedgeuntilsmooth.
6.Peelthebackingoffofthesuppliedgasketandplacetheadhesivesideofthegasketontothe
rearofthespeaker,pressingfirmlyontotheflange.
7.Connecttherelevantcabletothespeaker.
8.Slidethespeakerintoplaceandsecureusingthefixingsprovided.
9.FittheBezel,ensuringitclipsintoplaceonall4sides.
Wiredhandsetmountingusingtheholster
Followthestepsbelowtomountthewiredhandset.
Beforemounting,ensurethatyourselectedlocationmeetsthelocationrequirementsfoundin
thisdocument.
40
