Raymarine RAY91 Installation And Operation Instruction

2.Usingapencil,offeruptheMountingplatetothedesiredlocationandmarkthelocationofthe
screwholesandthecenterholeonthemountingpanel.
3.Drillholesforthemountingfixingsusingadrillwithasuitablesizeddrillbit.
4.Drillthecenterholeusinga14mm(0
.55in)drill/holecutter.
5.Pulltheconnectorendwiththeexposedthreadthroughthecenterhole.
6.Placethemountingplateovertheendoftheconnector.
7.Placethesplitwasherandnutovertheendoftheconnectorandsecurebyhandtightening
thenut.
8.Securethemountingplatetothemountingsurfaceusingthesuppliedscrews.
9.Screwtheantennasuppliedwithyourhubtotheconnector.
10.Connecttheoppositeendoftheextensioncabletotheantennaconnectorlocatedonthetop
ofthewirelesshub.

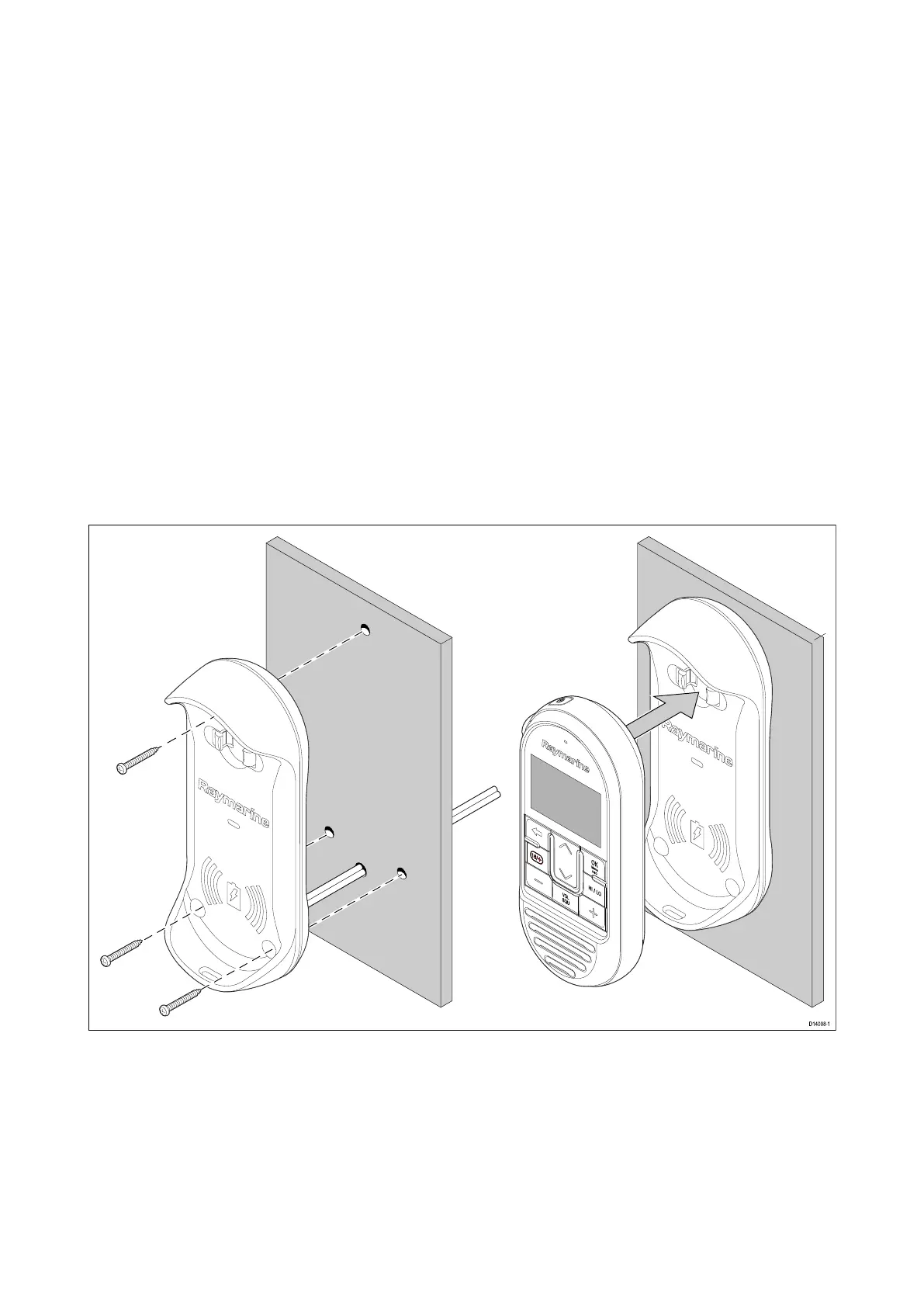

Mountingthechargingholsterforthewirelesshandset
Beforemounting,ensurethat:
•Y ourselectedlocationmeetsthelocationrequirementsfoundinthisdocument.
•Y oupayparticularattentiontothewirelesslocationrequirements.
•Theproductoperatescorrectlyatthedesiredlocationbeforemounting.
•Theproductdoesnotinterferewithnearbydevices.
1.Usingthesuppliedmountingtemplatemarkthelocationofthemountingholesandifrequired,
thecablehole .
2.Drillthemountingholesusingasuitablesizedrillbit.
3.Ifrequired,usea6.5mm(0.26in)drillbittodrillaholefortheholster’spowercable.
4.Holdtheholsterinplaceandsecureusingthescrewsprovided.
5.PlacetheHandsetintotheholster,ensuringitclicksintoposition.
46
