Check/Replacement of fuses
1. Open the batteries holder case and disconnect the batteries connector (see procedure in the previous para-
graph).

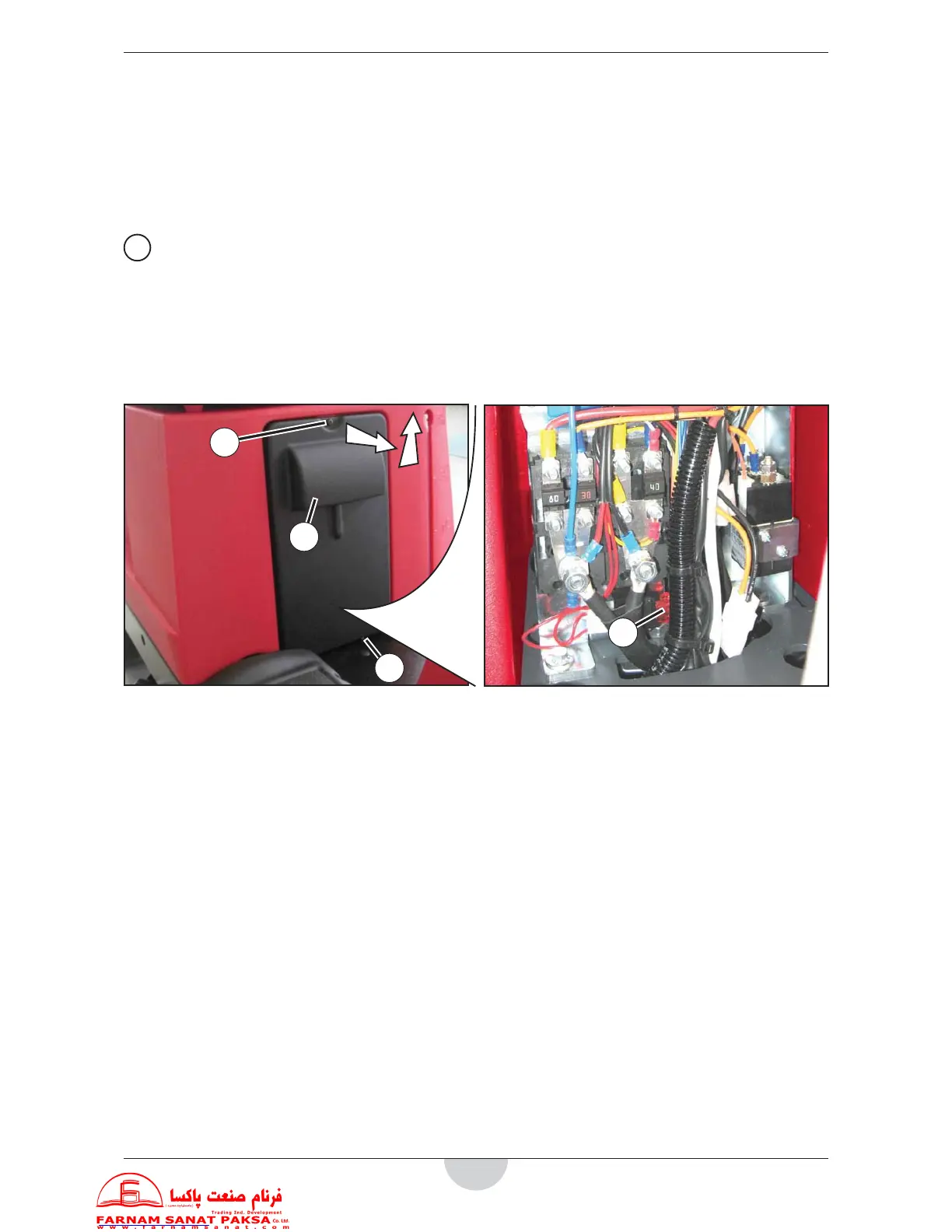

2. Remove the screw (F) with a crosshead screwdriver and the panel (G) by taking it by the handle (as shown in the
photo) and disengaging it from its lower pins (H).
3. Check/replace the fuse:
• 10A fuse, for auxiliary services (I) protection
!
ATTENTION!
Request intervention of a quali ed technician or of the Service Centre for replacement of the other fuses.
4. Insert the panel (G) by engaging it in its lower pins (H).
5. Screw back the screw (F).
6. Extract the batteries case again and connect the batteries connector.
7. Connect the batteries connector and close the batteries holder case (see procedure in the previous paragraph).
