Disassembly/assembly of the disc brush
• See the procedure in the “Use” chapter, “Preliminary operations before starting the machine” paragraph.
Disassembly/assembly of pad holder driving disc
• See the procedure in the “Use” chapter, “Preliminary operations before starting the machine” paragraph.
Disassembly/assembly of squeegee
• See the procedure in the “Use” chapter, “Preliminary operations before starting the machine” paragraph.
Disassembly/assembly of vacuum motor
Proceed as follows to disassemble the vacuum motor:
1. If available, place the machine on a raised platform, otherwise place it on a level  oor.
2. With the machine's controls (as foreseen in the Use chapter), lower the brush and the squeegee, then rotate the
ignition key to “0” and extract it.
3. Open the batteries holder case and disconnect the batteries connector (see procedure in the previous para-
graph).

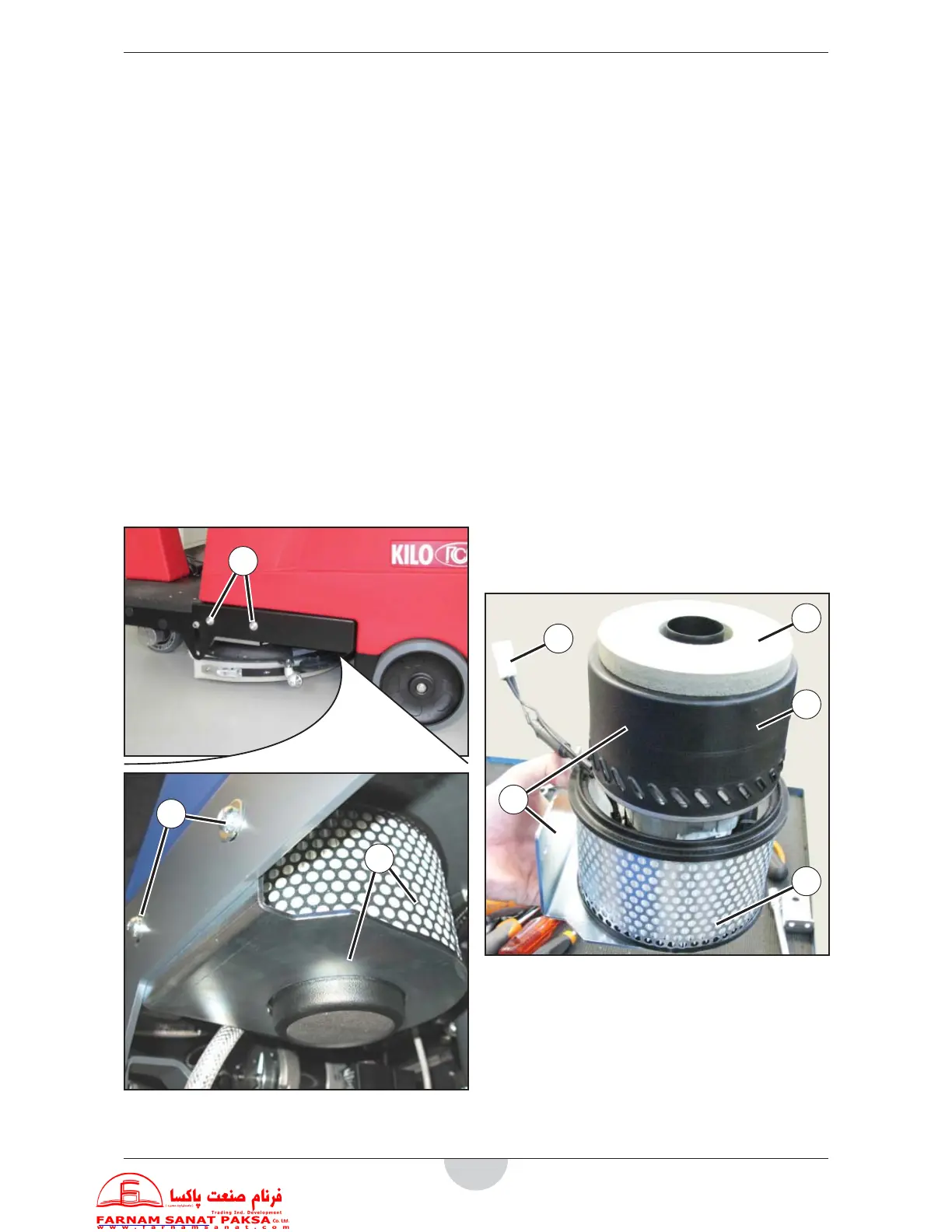

4. Operate on the left side of the machine to unscrew the screws (A).
5. After having disconnected the electrical connector (C) of the vacuum motor, remove the support unit with the
vacuum motor and  lter (B).
6. At the bench remove the soundproof gasket (D).
7. Cautiously remove the vacuum motor (E) by disengaging it from the suction  lter (F).
Proceed as follows to assemble the motor:
• Reassemble, following the disassembly operations in reverse.
A
A
B
B
C
D
E
F
