5.3.2 Evaluation according to ISO/IEC15416
5.3.2.1 1st screen page: Summary

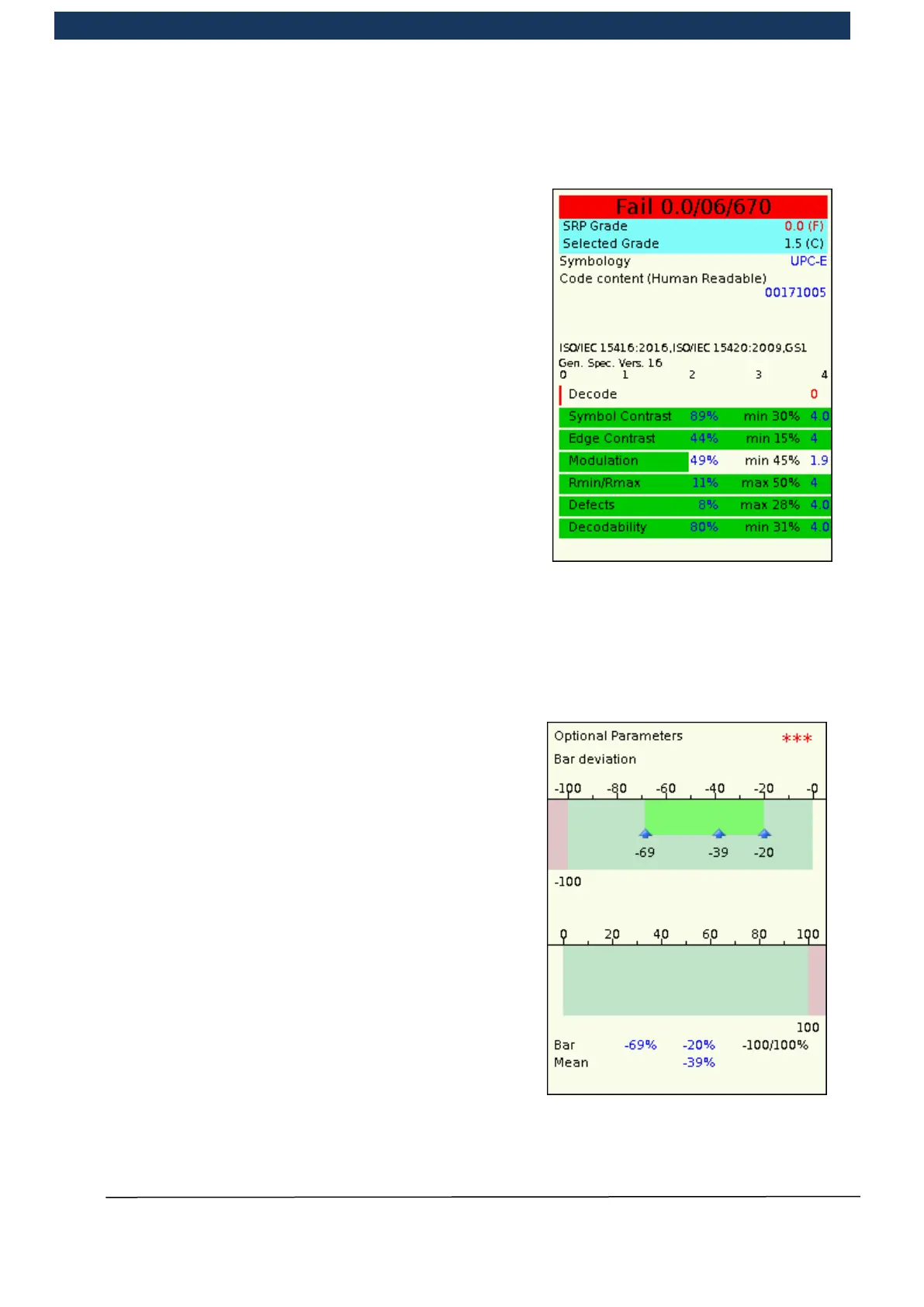

Result in ISO/IEC15416 format: Symbol
Evaluation Good or error Class / measuring aperture /
wavelength
Scan reflection profile: SRP class 0.0 (F)
Selected class 1.5 (C)
Decoded code type UPC-E
Decoded code content 00171005
Test standard and code specification for this evaluation:
ISO/IEC015416:2016 and ISO/IEC015420:2009 and
GS1 specification:2016
Display of the 7 determined ISO/IEC 15416 test
parameters as a bar graph with measured value/target
value and the classes attained here.
The respective bar is always coloured green if it was
possible to reach or surpass the selected class.
The respective bar is coloured red, if it was not possible to reach the selected class for the
parameter.
The poorest evaluation of all individual parameters determines the SRP class of the individual
evaluation.
5.3.2.2 2nd to 5th screen page: Deviations
The deviations from the bar, space, E-value and P-value
are shown on the following pages. The bright green area
indicates the area between the narrowest and widest
bar. If the bar is bright green, all bars are inside the
tolerance; if this is red then it is outside the permissible
tolerance. Such a diagram is shown on the following
pages for the narrowest and widest spaces, E-value (bar +
neighbouring space) and P-value (code word).
