Operating Manual Page 91 / 116 Copyright © REA Elektronik
REA ScanCheck 3n
V 1.2.0 24/02/2020
It is possible to enter a user comment in the following field.
A user comment can also be retrospectively added to a document. Please refer to chapter 5.6.1.4
Set-up sub-menu <4> Edit document Fehler! Verweisquelle konnte nicht gefunden werden. in
this regard.
The selection “ask for order number automaticall” before or after each measurement means
that the user will always be asked to enter an order number before or after every measurement. If
“do not show it automatically” is selected, the change to the order number can only be
implemented via the input field in this settings window or via the short cut (see below).
If the box in front of the field “use order number short cut” is activated by pressing the <OK>
button, it is then possible to call up the currently displayed input mask with order number directly
after every measurement by pressing the <OK Enter> button.
With this short cut, the user has the option of quickly accessing and changing the existing entry for
the entry of another order number or an amended comment every time.
Pressing the <OK> button once more immediately accepts the updated information for all of the
subsequent measurements.
5.6.1.3.4.3 Device configure <3> Options
In this menu it is possible to enable additional options subject to
licence requirements for this verifier.

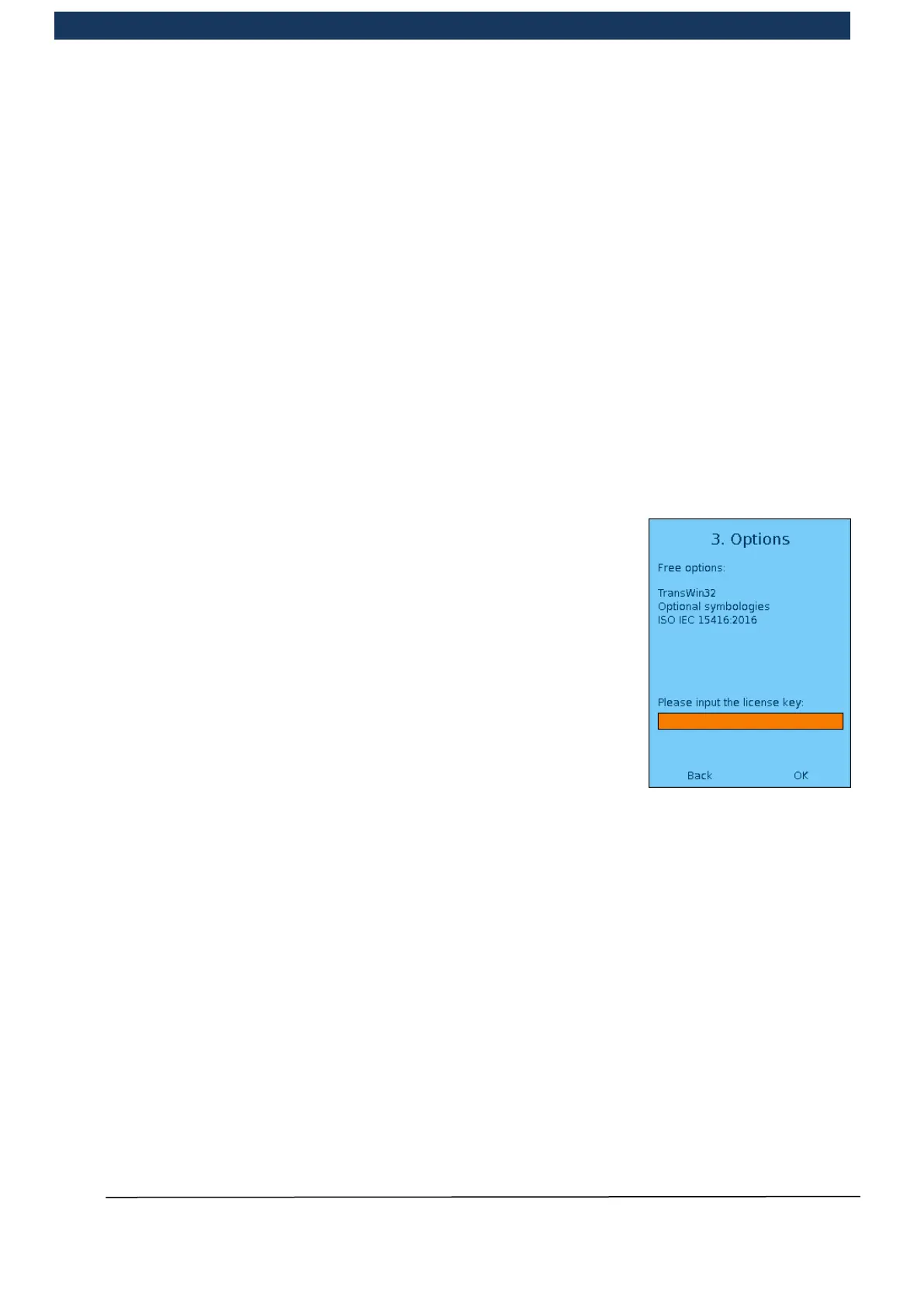

The list in the screen above shows all software options already
enabled.
Please contact your supplier to obtain the necessary activation key.
Operation of the REA ScanCheck 3n together with the PC evaluation
software REA TransWin 32 requires activation with a licence code for
example. Without activation, the respective device cannot be
identified, addressed or used by the PC software.
