10 Mounting, demounting and electric installation
10.1 Installation notes
● Do not lay the cables in parallel to motor cables or other strong sources of in-
terference over longer distances as otherwise interferences could be coupled
in
● Keep as much distance as possible to noise sources
● The LED displays on the operating panel must not be covered
● Lay all connecting cables in loops. Use strain reliefs for all cables
● Keep as much distance as possible to noise sources
● Install the control only horizontally in a control cabinet.
● Provide the following minimum distances for sufficient cooling:
30 mm
30 mm
30 mm
100 mm
100 mm

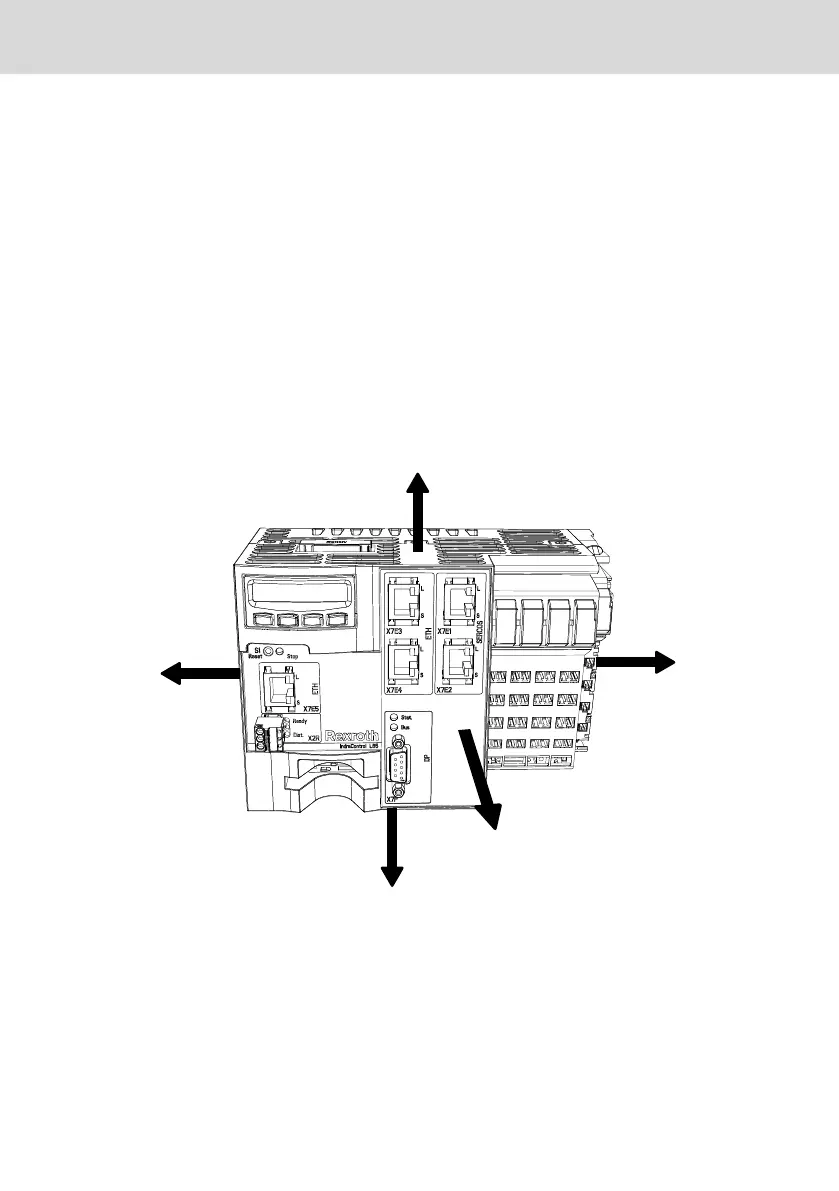

Fig. 10-1: Minimum distances for the circulation of ambient air
In case of a several line design, the supply air has to be measured under each
line and its limit value has to be observed. For information on the ambient
temperature, refer to chapter 6 "Ambient conditions" on page 8.
● Additionally, provide sufficient distance for mounting, demounting, connec-
tors and cable length
Bosch Rexroth AG
Mounting, demounting and electric installation
L25, L45, L65, L75 and L85
16/53
DOK-CONTRL-IC*LX5*****-IT02-EN-P
