Connecting unshielded lines

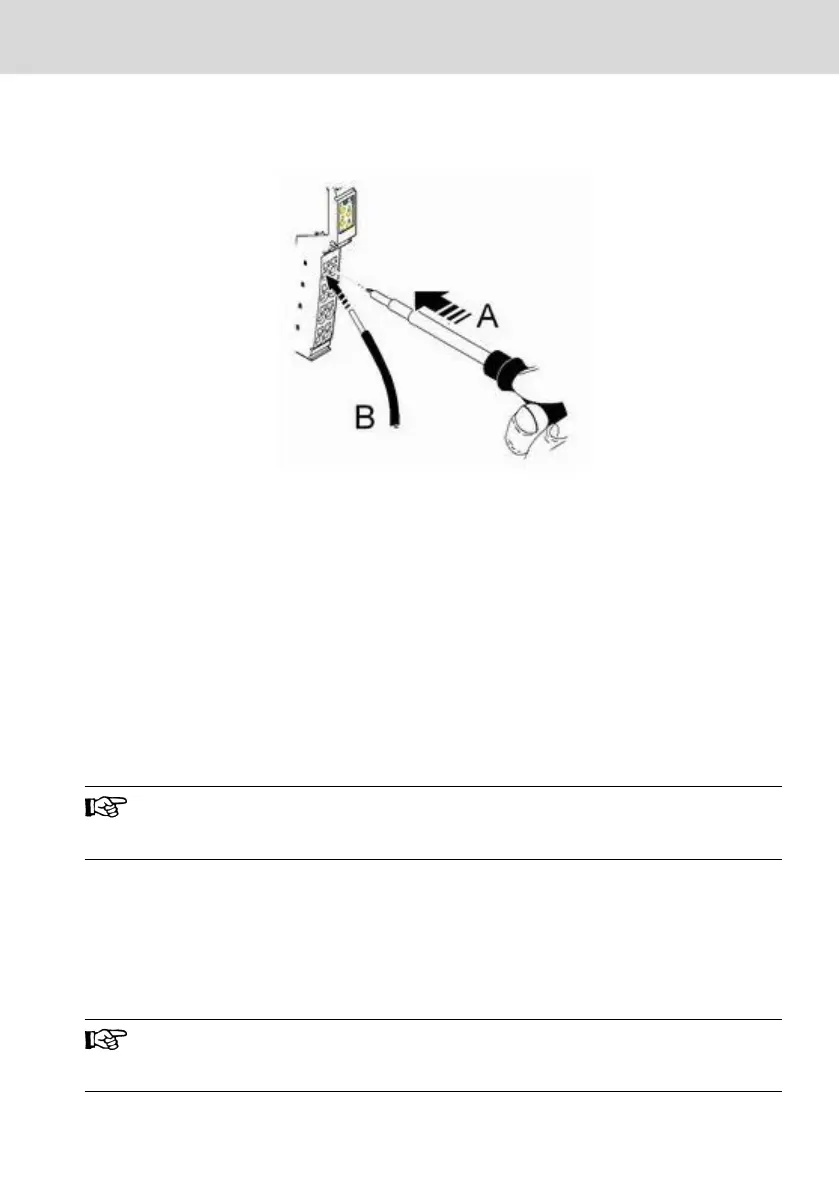

Fig. 10-24: Connecting lines to tension spring connectors
Proceed as follows to connect unshielded lines to the tension spring connector:
1. Wire the connectors as required for the application.
2. Strip the line to a length of 8 mm.
Wiring is provided without wire end sleeves. If wire end sleeves are still to
be used, ensure that the wire end sleeves are properly crimped.
3. Put a screwdriver into the actuation slot of the corresponding terminal
point (A in figure 10-24) so that the wire can be inserted into the opening
of the tongue.
4. Insert the wire (B in figure 10-24).
5. Pull the screwdriver out of the opening. This fixes the wire.
For further information on the connection method, please refer to
the Rexroth Inline Profibus DP; Application Description (also refer to
"Related documents" on page 2).
10.7.8 Information on the control use above 2,700 m above sea level
General information
The control is designed for usage up to 2,700 m above sea level acc. to DIN
60204 (see also chapter 6 "Ambient conditions" on page 8).
If it is used above 2700 m above seal level, Bosch Rexroth does as-
sume any warranty. Therefore, the user assumes the responsibility if
used above 2,700 m above sea level.
L25, L45, L65, L75 and L85 Bosch Rexroth AG
Mounting, demounting and electric installation
DOK-CONTRL-IC*LX5*****-IT02-EN-P
37/53
