12 Device description

12.1 General information

678911

① Ready contact

② Reset button and stop LED

③ Display with four operating keys

④ Battery

⑤ Ethernet interfaces

⑥ Voltage supply

⑦ Digital outputs

⑧ Digital inputs

⑨ RS485

⑩ Fan if available

⑪ Slot for Compact Flash card

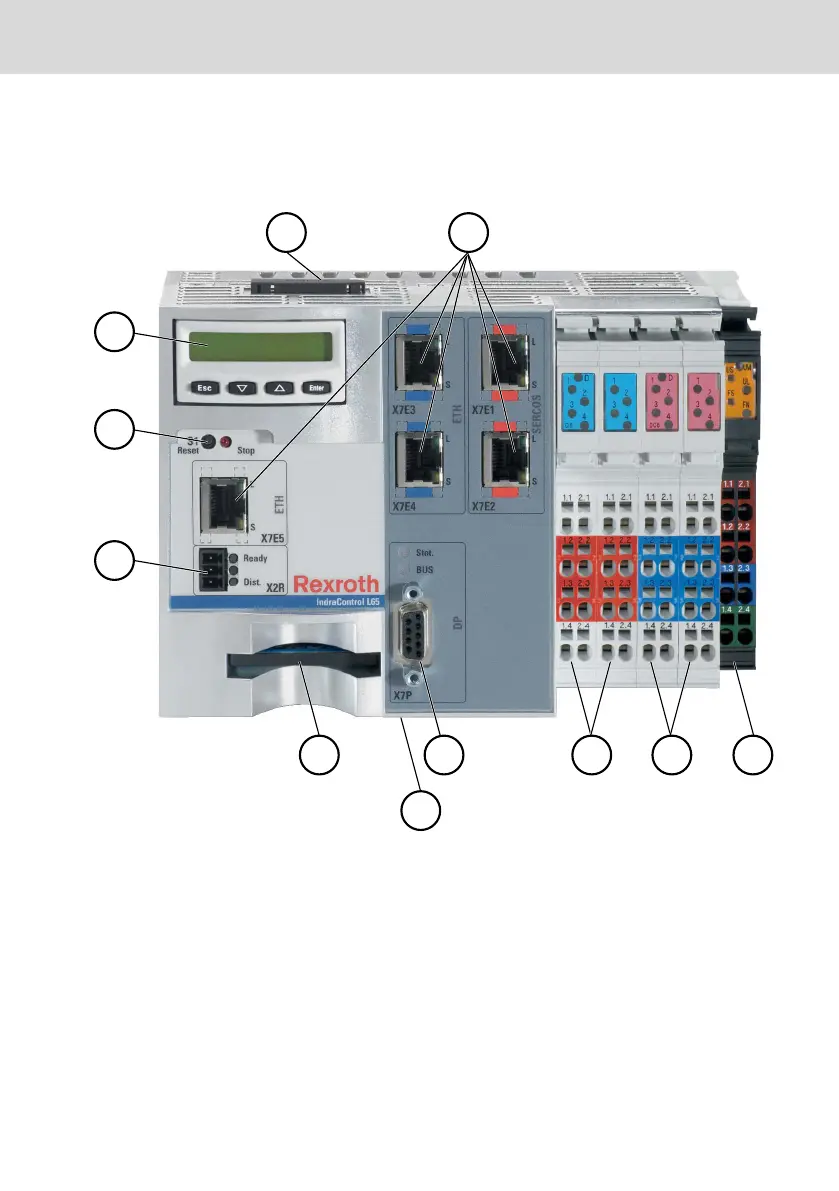

Fig. 12-1: Front view of a control (here: L65)

L25, L45, L65, L75 and L85

Bosch Rexroth AG

Device description

DOK-CONTRL-IC*LX5*****-IT02-EN-P

43/53
