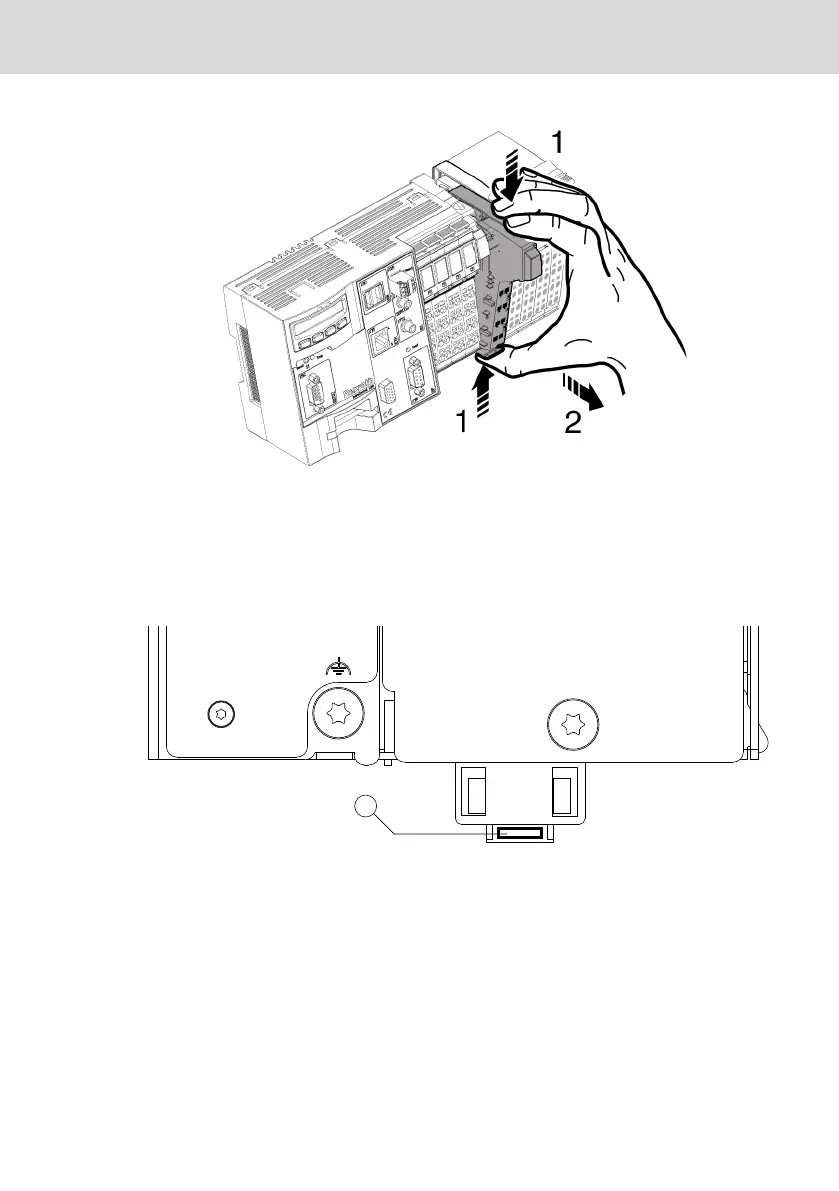

Fig. 10-15: Before demounting the control, remove the first Rexroth Inline terminal

10.5.3 Removing control from top-hat rail

1. Loosen the release levers mounted at the bottom side by pulling the re-

lease lever downwards using a screwdriver.

① Release lever

Fig. 10-16: Position of the release lever

2. Tilt the control upwards (C in figure 10-17).

L25, L45, L65, L75 and L85

Bosch Rexroth AG

Mounting, demounting and electric installation

DOK-CONTRL-IC*LX5*****-IT02-EN-P

27/53
