① Top-hat rail

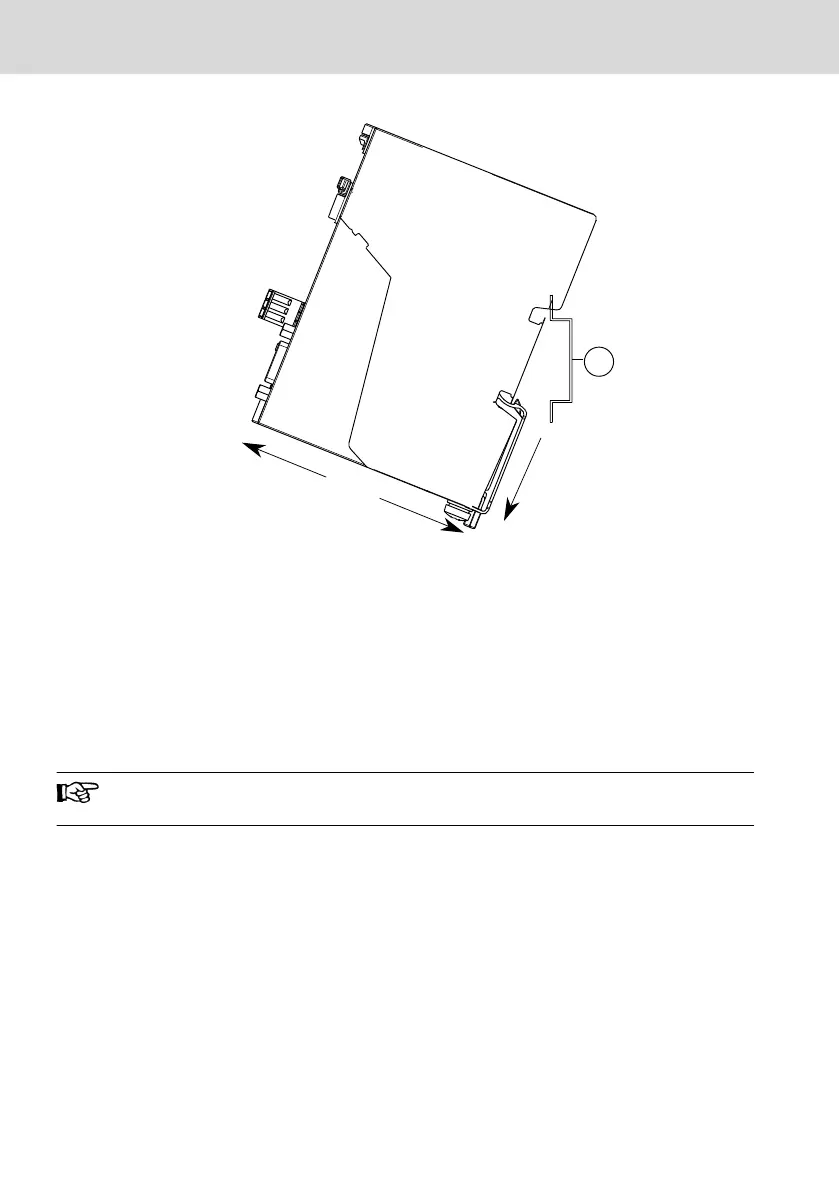

Fig. 10-17: Demount the control from top-hat rail (C)
3. Remove the control by pulling it diagonally upwards.
10.6 Demounting and changing the Inline terminals
10.6.1 Removing an Inline terminal
1. Remove the labeling field if present (A1 in figure 10-18).
Remove all connectors of the terminal. The sections below describe
how to remove a 2-slot terminal.
2. Lever the connector of the terminal to be removed by pressing on the rear
connector shaft latching (A2 in figure 10-18).
Bosch Rexroth AG
Mounting, demounting and electric installation
L25, L45, L65, L75 and L85
28/53
DOK-CONTRL-IC*LX5*****-IT02-EN-P
