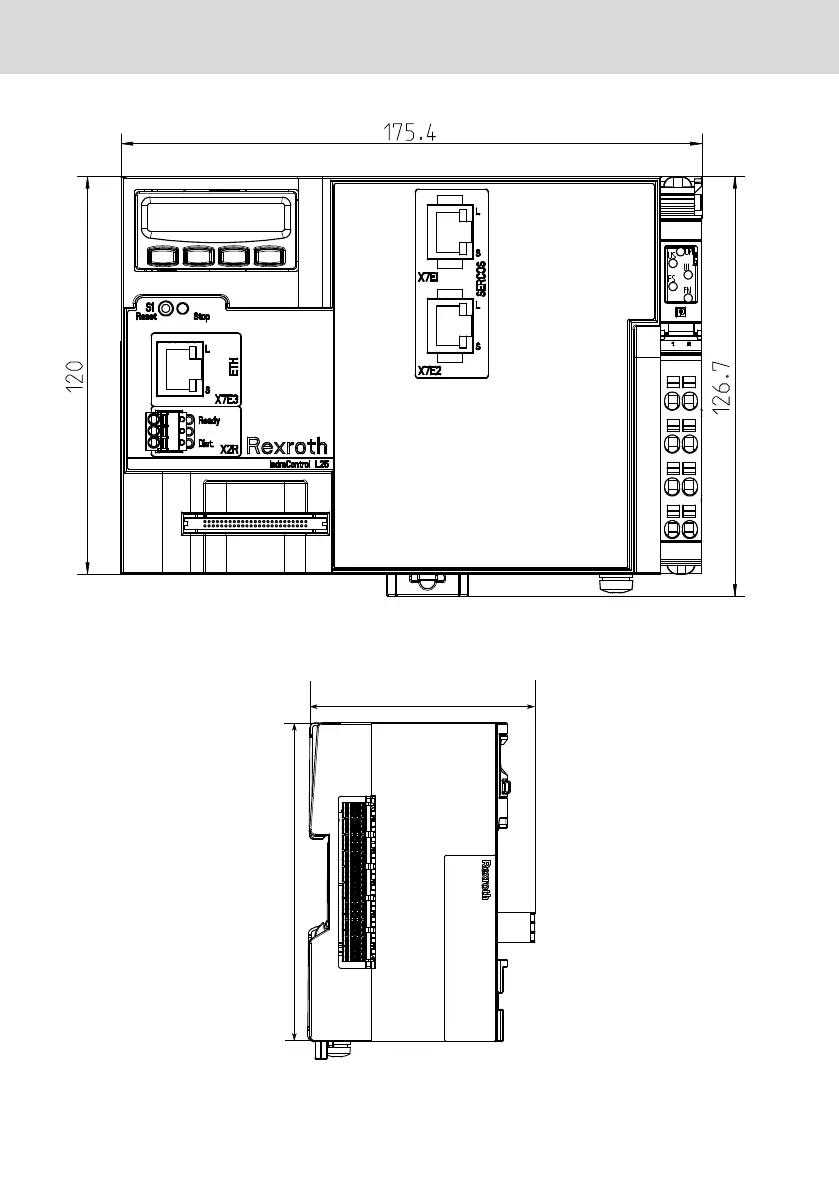

Fig. 10-6: L25, front view (in mm)

120

107

Fig. 10-7: L25, left view (in mm), the cut-out for the top-hat rail is arranged centrally

Bosch Rexroth AG

Mounting, demounting and electric installation

L25, L45, L65, L75 and L85

20/53

DOK-CONTRL-IC*LX5*****-IT02-EN-P
