Application: Valve control for the 4WRE6 / 4WRE10 3
Status
The „Status“ window provides an overview of the current faults that were detected
while the controller card was running.
Clicking on the preceding icon, which i spart of the toolbar, also opens
the „Status“ window. A listing of existing shortcuts for the toolbar can
be found in Section 4.2 “BODAC Toolbar“.

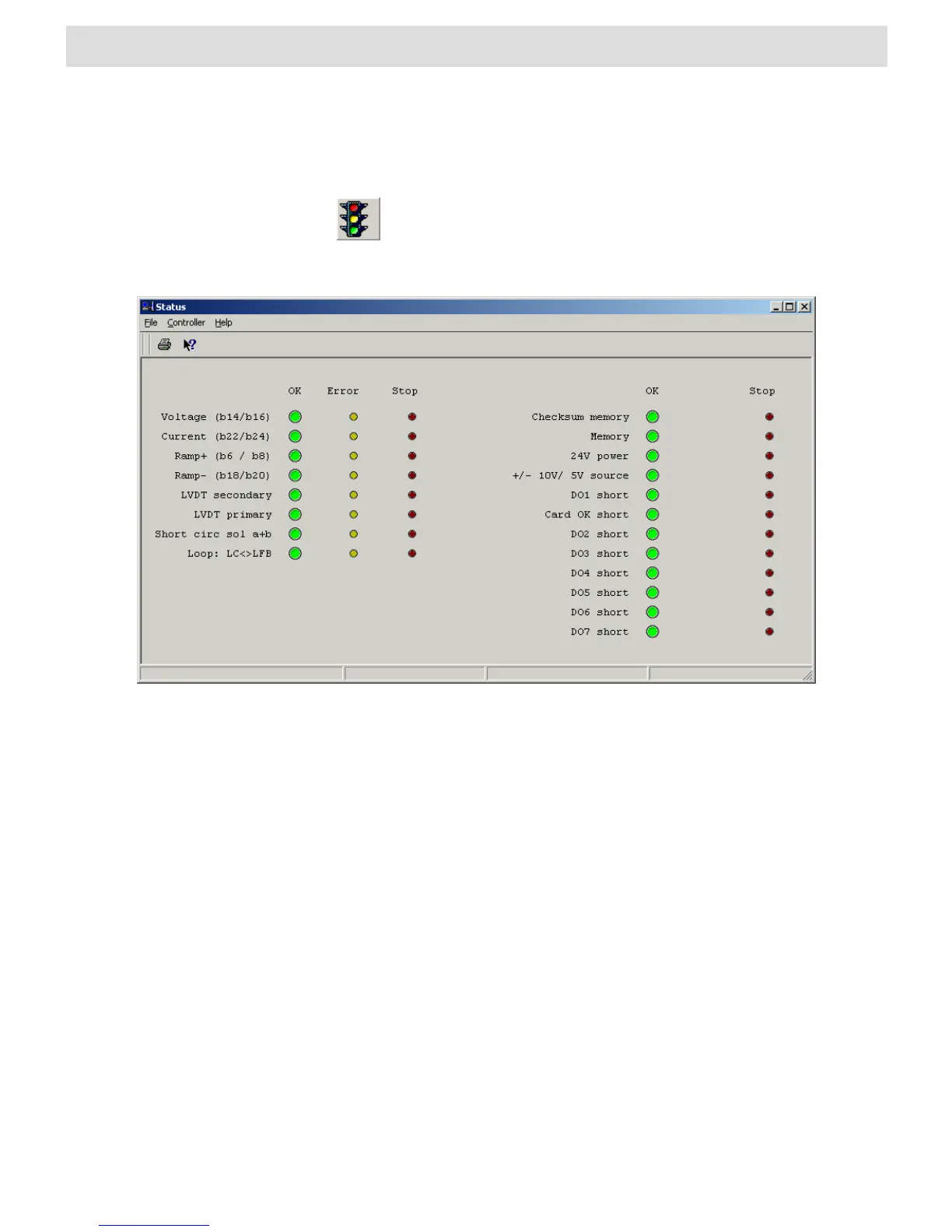

Fig. 16 Window „Status“
The signals monitored can have the following status:
n OK
No faults.
n ERROR
A Fault was detected. This Fault was configured as a „ERROR“ in the „Fault“
window resulting in the detection of the Fault but not switching off the controller.
Not every Fault can be configured as a “ERROR”. See also Section “Faults”.
n STOP
A Fault was detected. This Fault was configured as a „STOP“ in the „Fault“
window resulting in switching off the controller. See also Section “Faults”.
Test jacks
In this window you can configure the test jacks: You specify which control parameter
is available on the test points.
