BODAC – Menu Description 5
A fault is indicated if the reference voltage +/-10 V on the edge connector deviates by
0.5 %.
Error indication for digital outputs 1 through 7 when there is a short circuit on one of
the outputs.
Takes you directly to the help for the current topic, or to the contents page of the
BODAC windows help.
Fault History
The window “Fault History” provides an overview of the last 16 faults occurred.

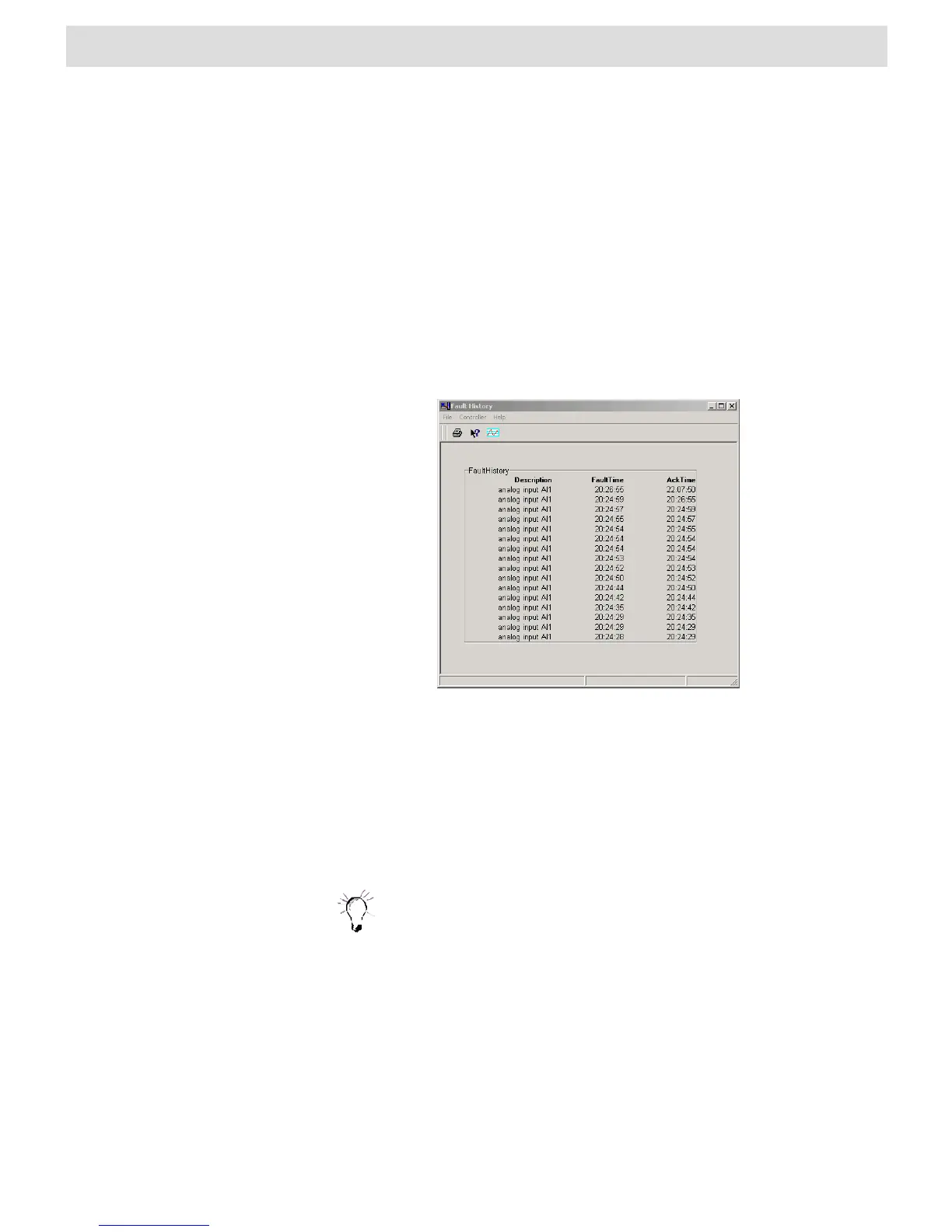

Fig. 26 “Fault History” window
Listing of the fault in clear text. The texts correspond to the fault texts in the “Status”
window
Time when the fault was recognized. The timer starts when the enable is set and
stops when the enable is reset.
Time, when the rectification of the fault was recognized. In this case, the enable must
be set.
The timer runs only when the enable is set.
Errors are only recognized while the enable is set.
+/-10V Reference
Short circuit DO1 to DO7
