BODAC – Menu Description 5
Local Bus
In the window “LocalBus Hardware”, you can set the bus address of the amplifier card
for the local bus.
The local bus is used to connect the individual amplifier cards of the HACD family.

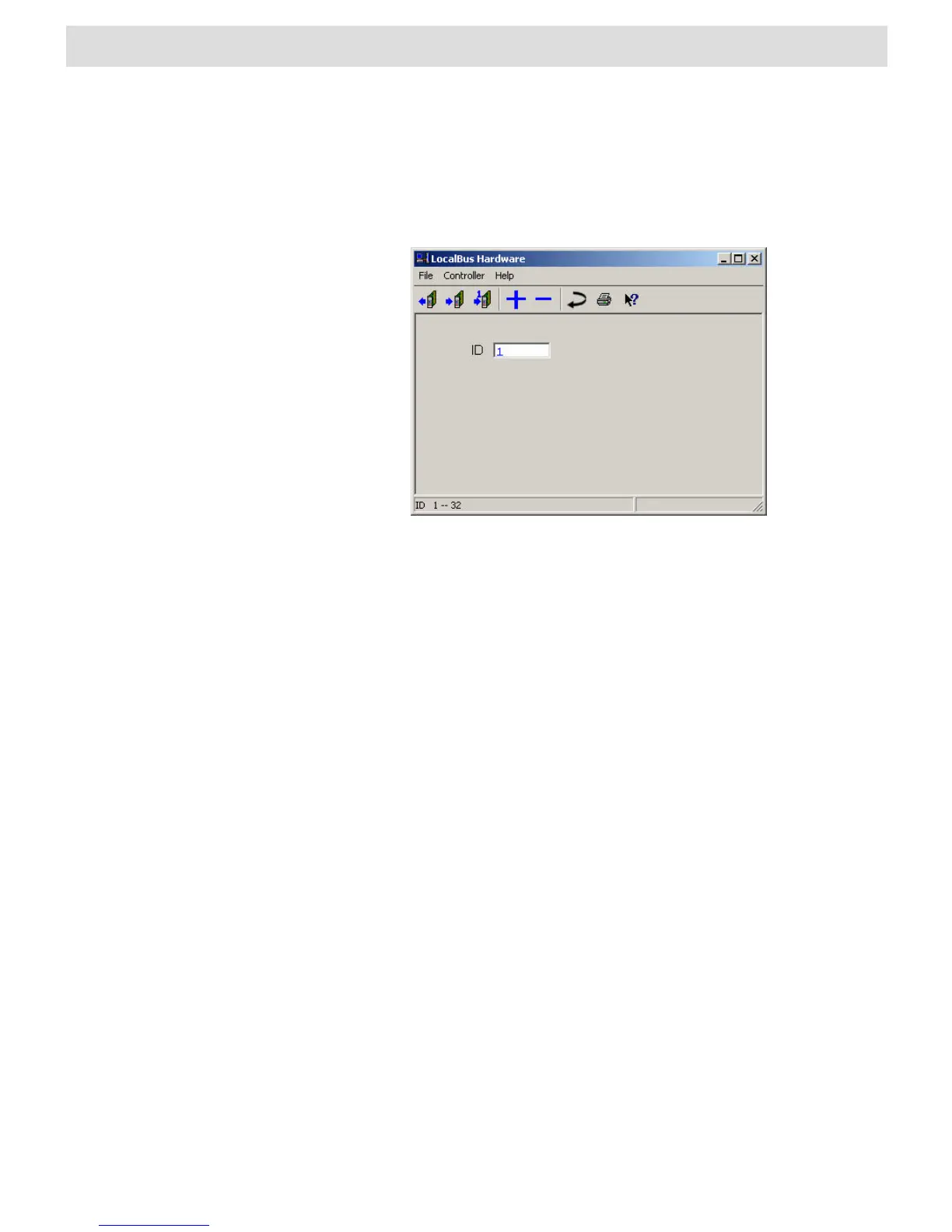

Fig. 29 Window "LocalBus Hardware"
The File menu in the window “Local Bus” corresponds to the BODAC main window
“File” menu.
Contains commands for reading, writing and modifying parameters.
Takes you directly to the help for the current topic or to the contents page of the
BODAC windows help.
Buttons are provided for frequently used functions. They are described in "Toolbar of
a window".
Up to 32 cards can be connected. Each amplifier must be assigned a clear bus
address.
The connection is established using a CAN protocol with a baud rate of 250kbit. The
maximum length of the most distant amplifier cards must not exceed 280m. Moreover,
the maximum length of the branch lines of 1 m must be observed.
