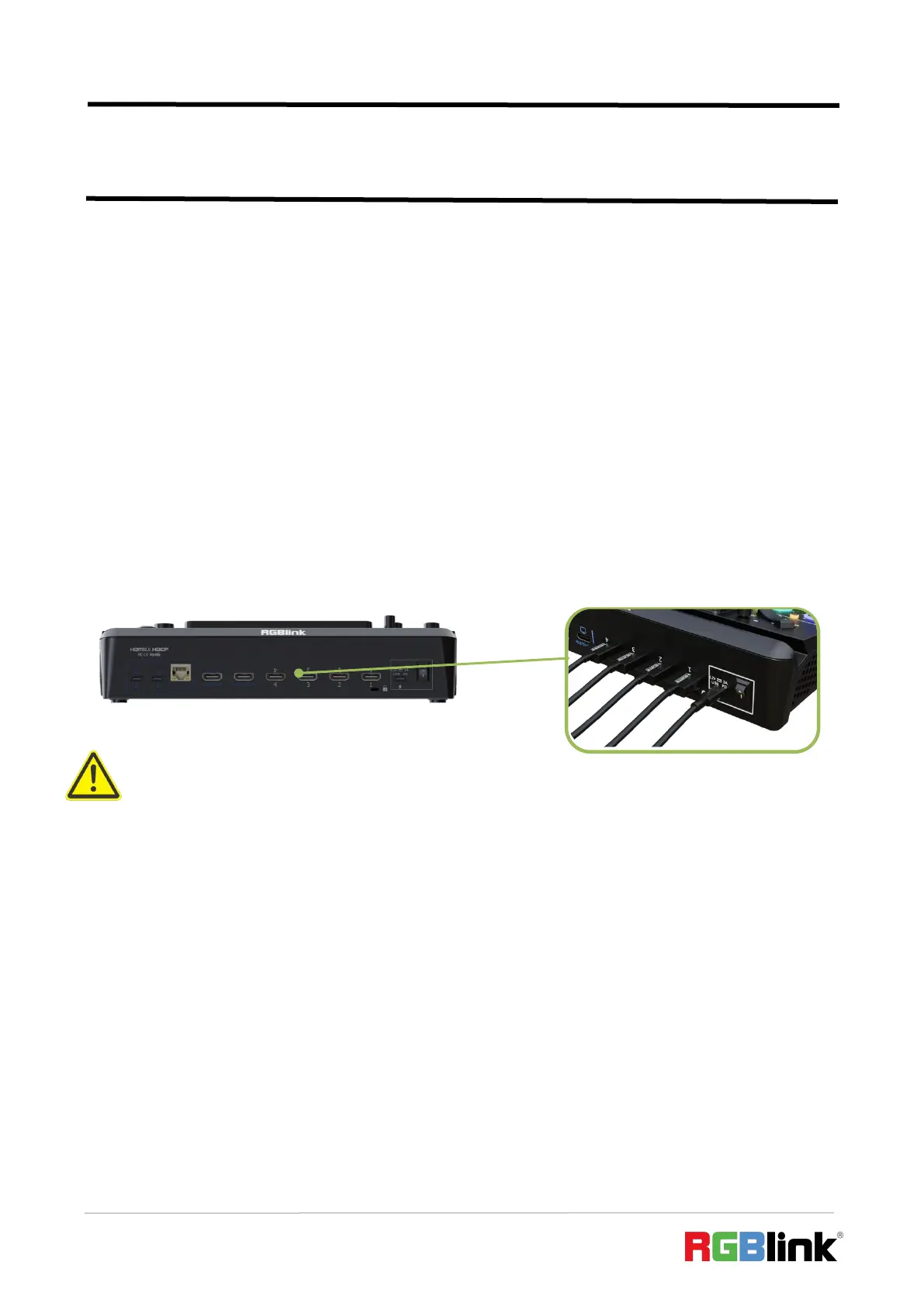

Chapter 2 Install Your Product
2.1 Connecting HDMI Input
Users can use any camera, computer or other HDMI device as the input source of the mini-edge.
mini-edge supports up to 4 sources of different formats and resolutions at the same time via 4
HDMI ports, and 4 HDMI inputs support up to 4K@60Hz. If users are using interlaced signal,
mini-edge supports de-interlace through HDMI 1 automatically.
Users can see the input views on the mini-edge screen when there is active signal plug in. Connect
mini-edge to a monitor with HDMI output interface to see PVW views and output resolutions.
2.2 Connecting HDMI Output
Users can use HDMI cables to connect MULTI-VIEW and PROGRAM output interfaces to a monitor
with an HDMI input interface so as to check PVW and PGM views in real time.
Warning:
The HDMI cable is not included in the mini-edge package and needs to be purchased separately. Some
camcorders use a mini HDMI port, you need to buy a mini HDMI-HDMI cable separately when you use
these camcorders.
