Installation: G3 Interface Unit Type 9001 (D418-06)
D418 12 SM

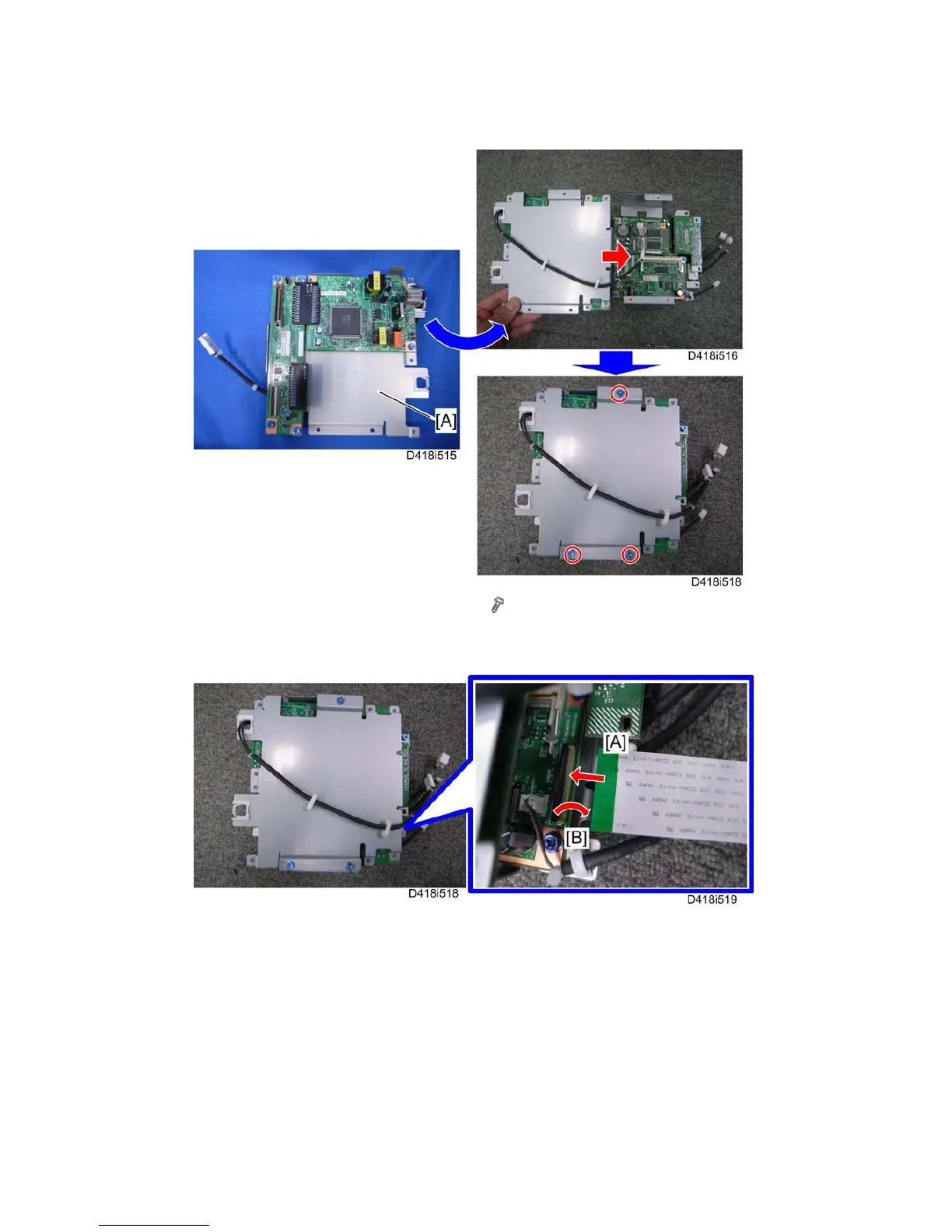

6. Install the G3 interface unit [A] on the FCU (
x 3).
Put the G3 interface unit on the FCU.
Tighten three screws.
7. Connect the FFC (Flexible Flat Cable) to the FCU.
[A]: Insert the FFC securely as shown above.
[B]: Lock the stopper.
