Installation: G3 Interface Unit Type 9001 (D418-06)
SM 13 D418
Fax Option
Type 9001
D418

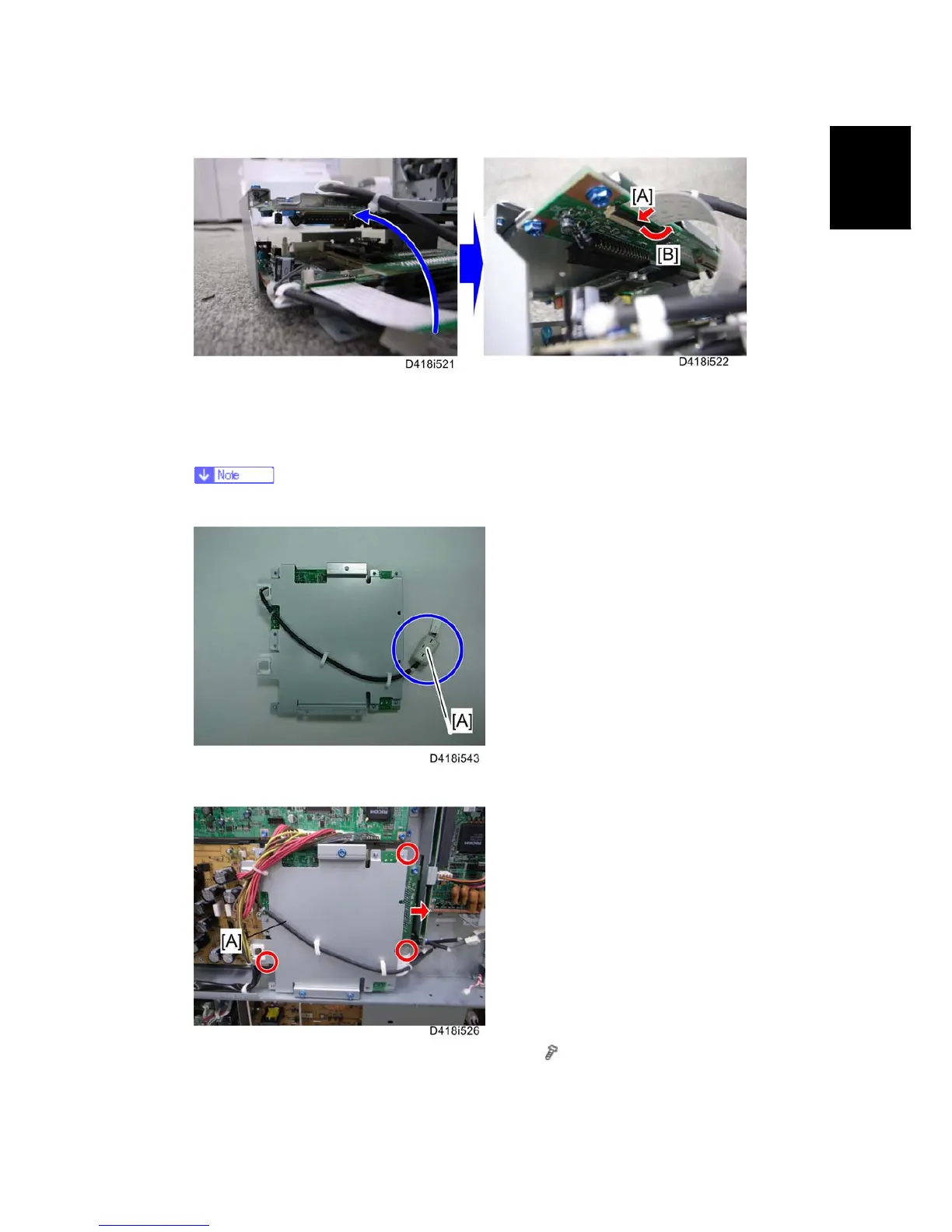

8. Connect the other edge of the FFC to the G3 interface unit.
 [A]: Insert the FFC securely as shown above.
 [B]: Lock the stopper.
 Make sure that both green sides of the FFC face each other
9. Attach the ferrite core (RFC-5) [A] to the cable.
10. Install the FCU assembly [A] in the interface board (
x 3).
