Electrical Components: 3rd Stopper
SM 33 D454
Multi-Folding
Unit FD5000
D454

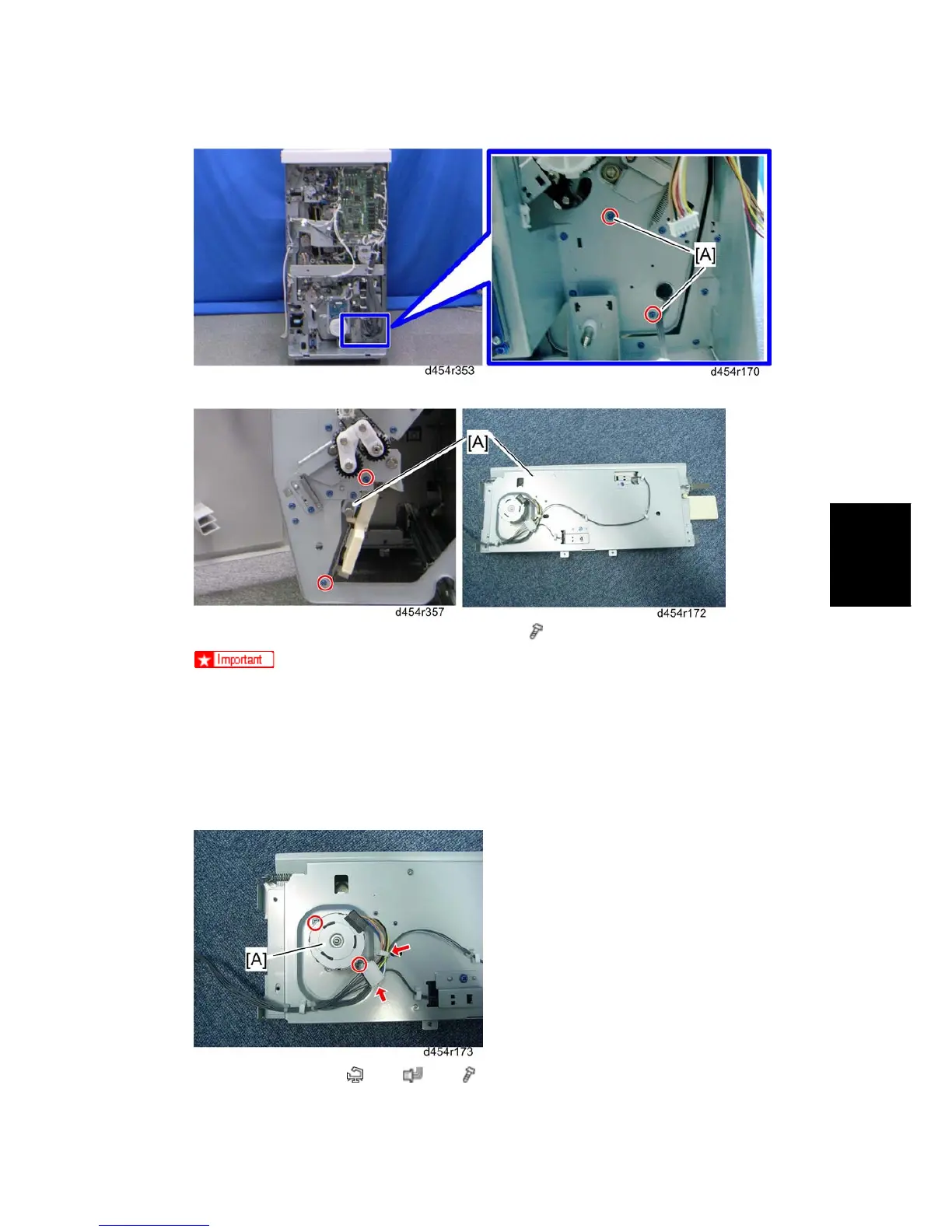

8. Remove two screws [A].
9. Hold the 3rd stopper unit [A], and then remove it (
x 2).
 The 3rd stopper unit cannot hang the folding unit drawer without the two screws.
If you remove the 1st stopper unit without any support, the 3rd stopper unit can
fall and be broken.
1.5.2 3RD STOPPER MOTOR
1. 3rd stopper unit ( p.32)
2. 3rd stopper motor [A] (
x 1, x 1, x 2)
