Replacement and Adjustment
D454 34 SM

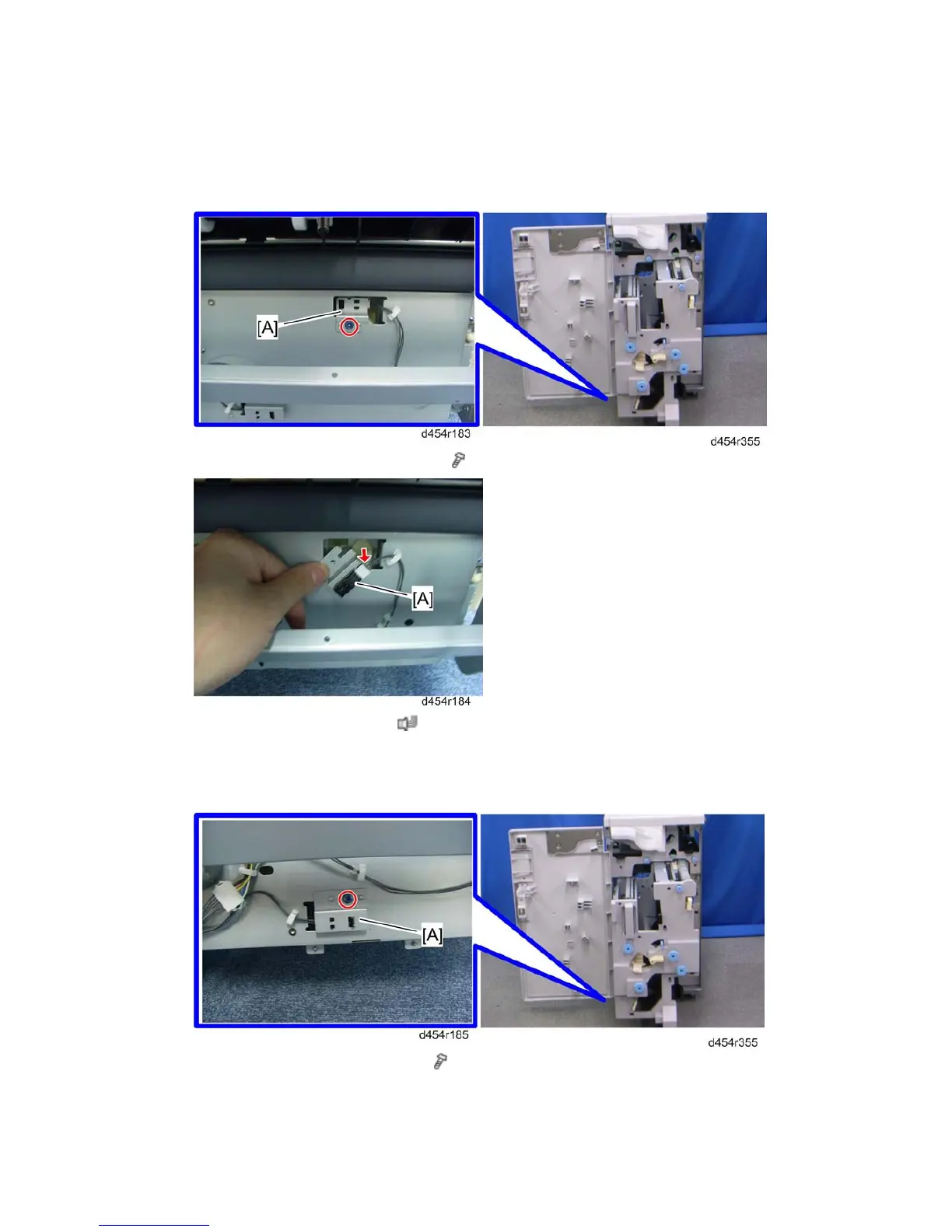

1.5.3 3RD STOPPER PAPER SENSOR
1. Pull out the folding unit drawer.
2. 3rd stopper paper sensor bracket [A] (
x 1)
3. 3rd stopper paper sensor [A] (
x 1)
1.5.4 3RD STOPPER HP SENSOR
1. Pull out the folding unit drawer.
2. 3rd stopper HP sensor bracket [A] (
x 1)
