Ricoh Aficio MP 8001 Service Manual

Electrical Components: 3rd Stopper
SM 35 D454
Multi-Folding
Unit FD5000
D454

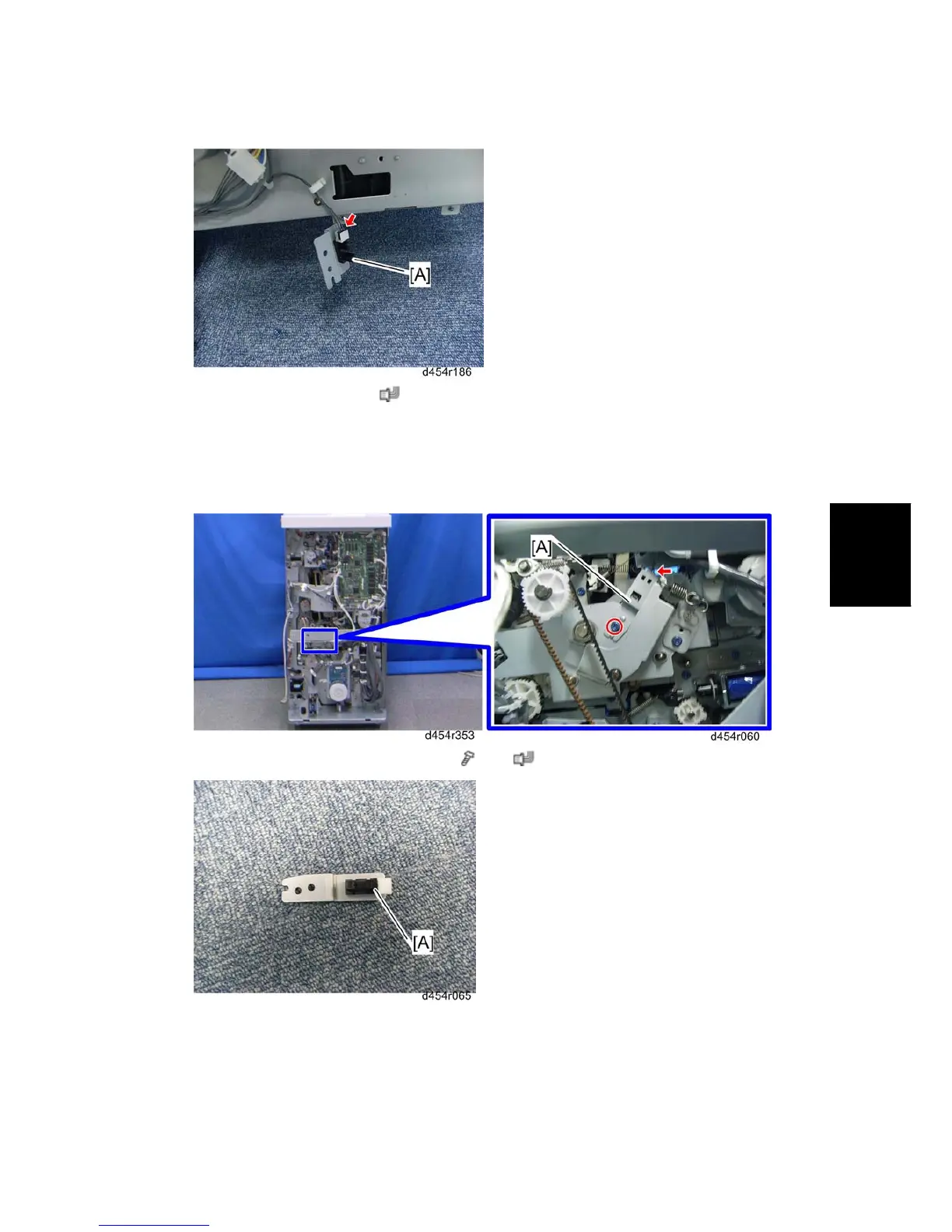

3. 3rd stopper HP sensor [A] (
x 1)
1.5.5 DIRECT-SEND JG (JUNCTION GATE) HP SENSOR
1. Rear upper cover ( p.4)
2. Rear lower cover ( p.4)
3. Direct-Send JG HP sensor bracket [A] (
x 1, x 1)
4. Direct-Send JG HP sensor [A] (hooks)
1.5.6 REGISTRATION ROLLER HP SENSOR
1. Rear upper cover ( p.4)
