Replacement and Adjustment
D454 84 SM

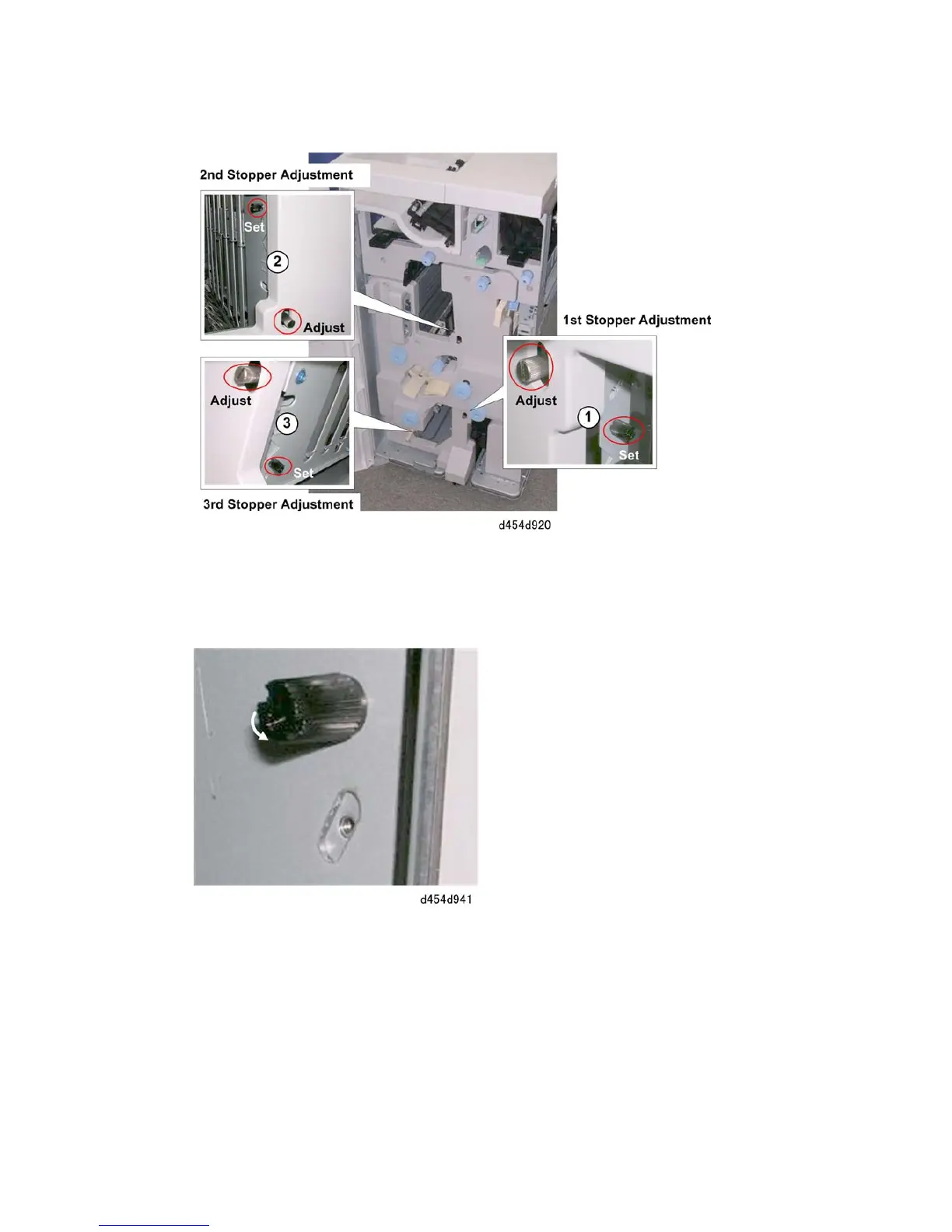

3. The illustration above shows the location for each stopper adjustment.
Each stopper is equipped with two screws.
The black plastic screw is the Set screw and the metal silver screw is the
Adjustment screw.
4. Remove the Set screw.
