Skew Adjustment
SM 85 D454
Multi-Folding
Unit FD5000
D454

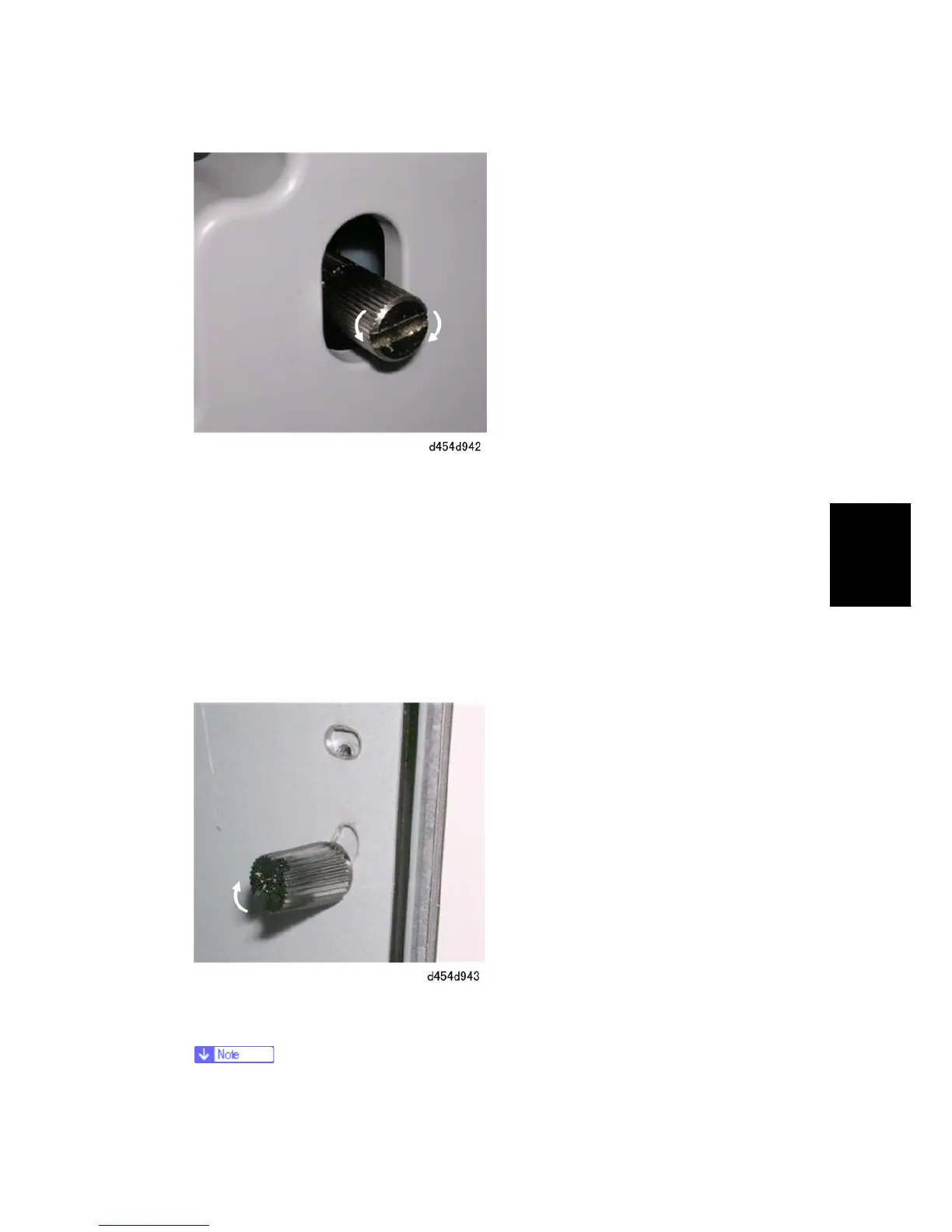

5. Turn the Adjustment screw to do the adjustment for the stopper.
1st, 3rd Stopper
Turn the Adjustment screw clockwise to lower the front end of the fence.
-or-
Turn the Adjustment screw counter-clockwise to raise the front of the fence.
2nd Stopper
Turn the Adjustment screw clockwise to raise the front end of the fence.
-or-
Turn the Adjustment screw counter-clockwise to lower the front of the fence.
6. Fasten the Set screw in the hole of the diagonal cutout near the hole where you
removed it.
The diagonal cut may be above or below the original hole, depending on which
