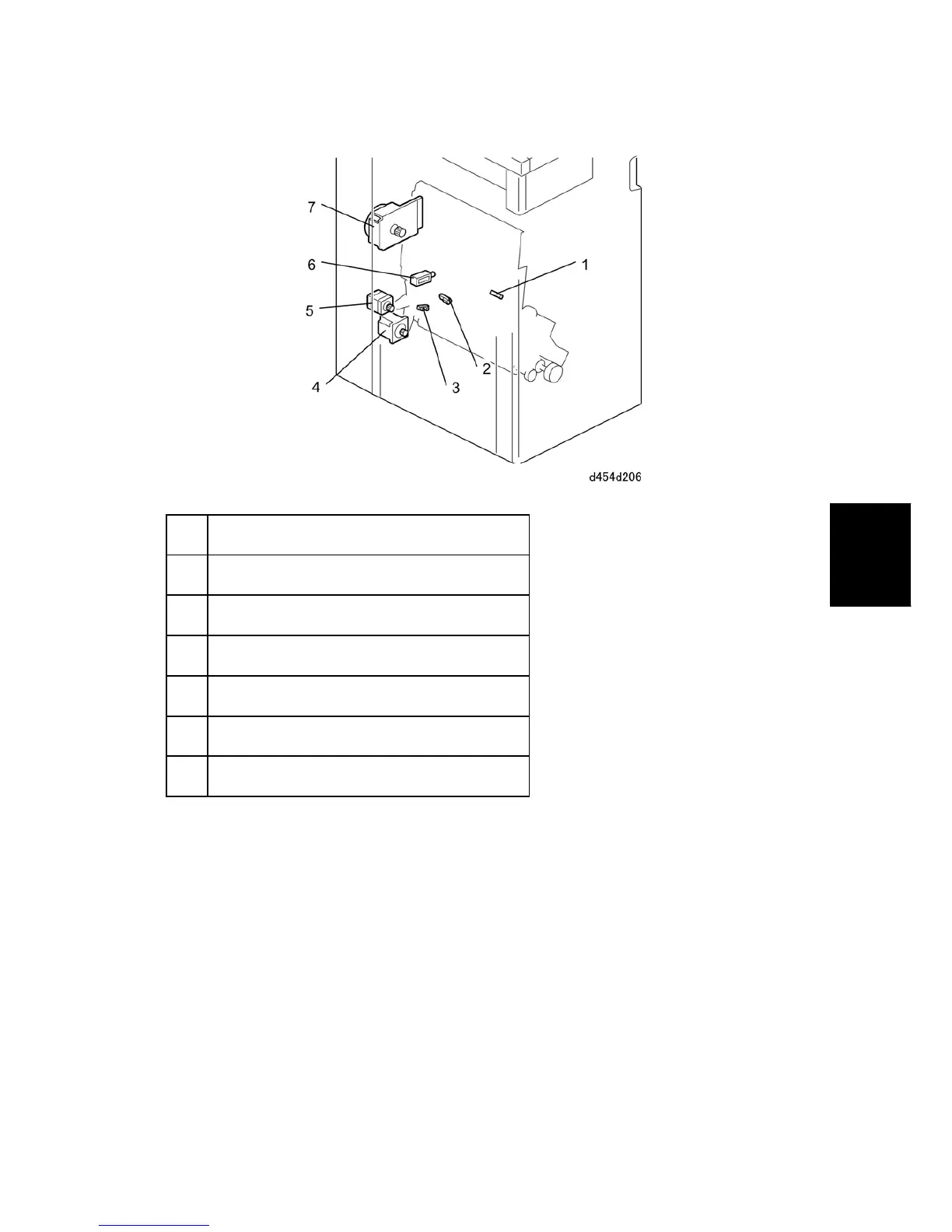

Electrical Components
SM 125 D454
Multi-Folding
Unit FD5000
D454
1. Bypass Entrance Paper Sensor
2. Bypass Exit Paper Sensor
3. FM6 Pawl HP Sensor
4. 2nd Fold Motor
5. FM6 Pawl Motor
6. Bypass JG Solenoid
7. Crease Motor
