3. Paper guides
When loading paper in the bypass tray, align the paper guides with the edges of the paper.
4. Extender
Pull this extender out when loading paper larger than A4 , 8
1
/
2
× 11.
5. Lower right cover
Open this cover to remove jammed paper.
6. Right cover
Open this cover to remove jammed paper.
7. Vents
Holes for ventilating the inside the machine to prevent the internal components from overheat.
After large-volume printing, the ventilation fan may continue to work to lower the temperature inside the
machine.

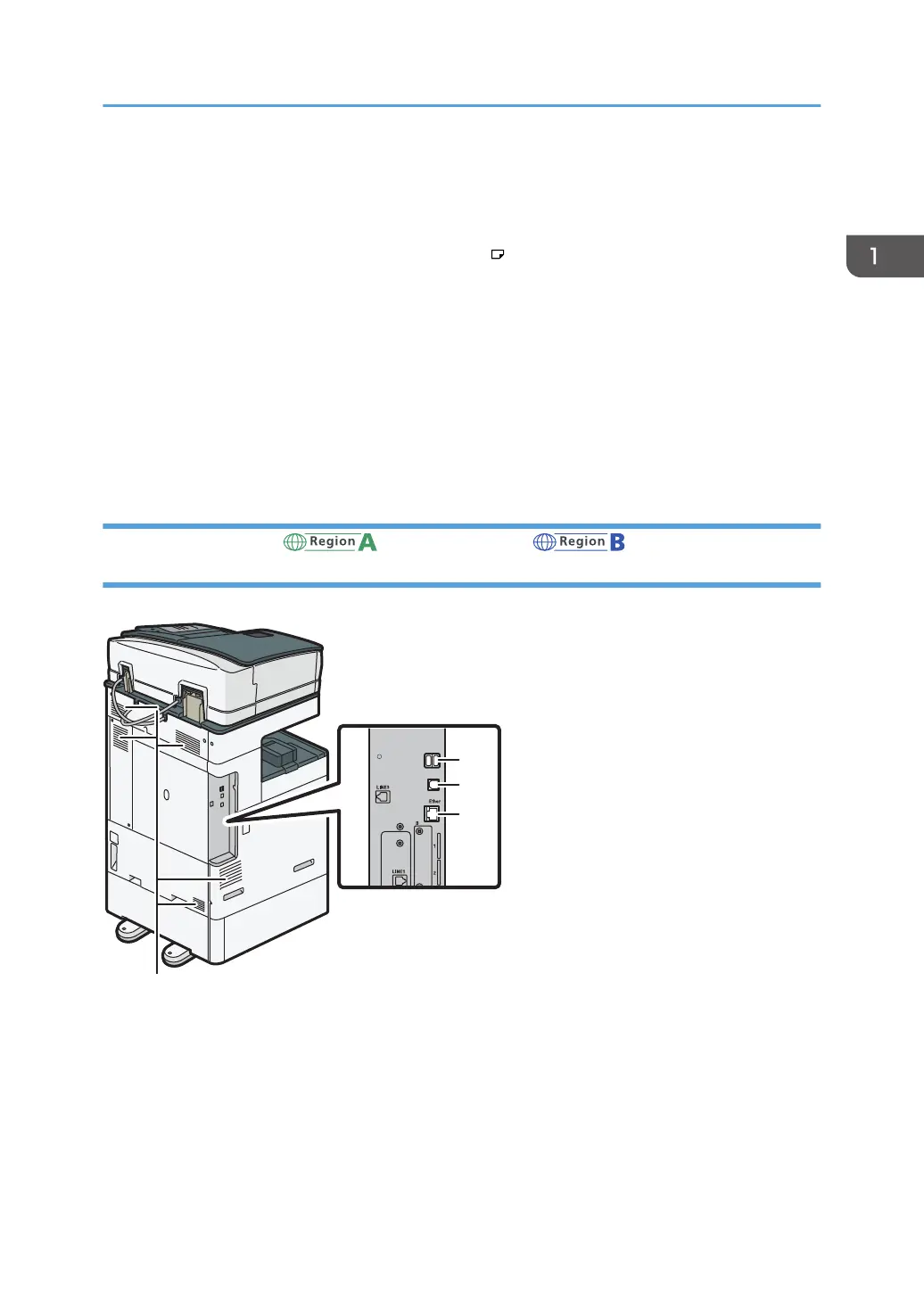

Rear and Left View (mainly Europe) (mainly North
America)
DZC163
4
1
2
3
1. USB2.0 Interface Type A
Use the port to connect the IC card authentication device.
2. USB2.0 Interface Type B
Use the port to connect the machine and the computer with the USB cable.
Guide to Names and Functions of Components
17
