INSTALLATION PROCEDURE 1 March, 2000
3-8

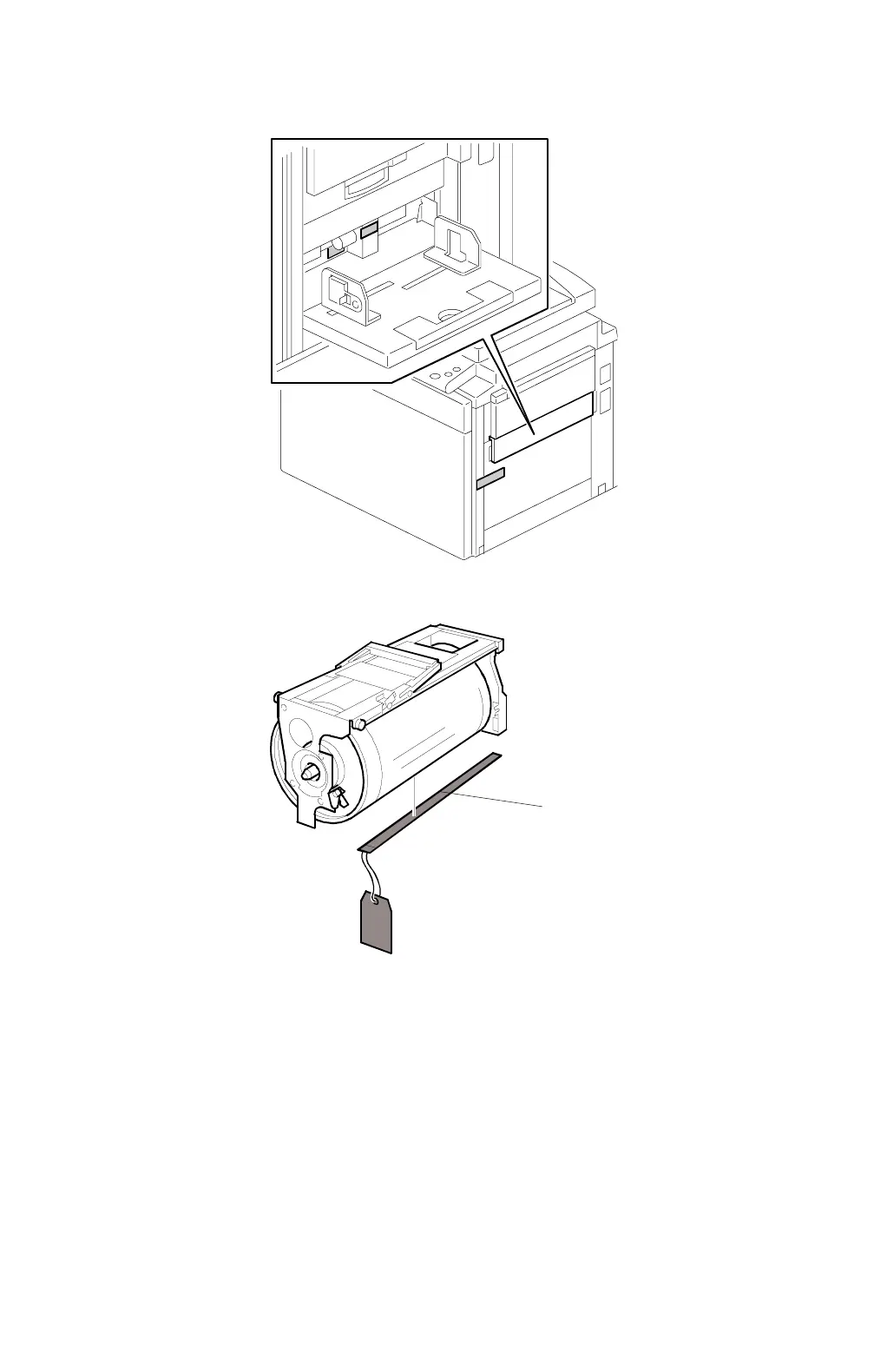

6. Remove the tape securing the covers and units. Open the front cover, and slide
out the drum unit. Then, remove the master clamper protective sheet [A].
C232I009.WMF
C232I031.WMF
[A]
