20 February, 2001 PAPER FEED
6-51
Detailed
Descriptions
6.11 PAPER FEED
6.11.1 OVERVIEW
There are one or two paper trays, each of which can hold 250 sheets.
The paper tray feed stations use a friction pad system. To prevent paper from
getting caught inside the machine when the tray is pulled out, the paper feed roller
and shaft do not separate from the tray when the tray is pulled out.
The two relay sensors are used for paper jam detection. The lower one detects
jams when paper is fed up from the optional paper feed unit.

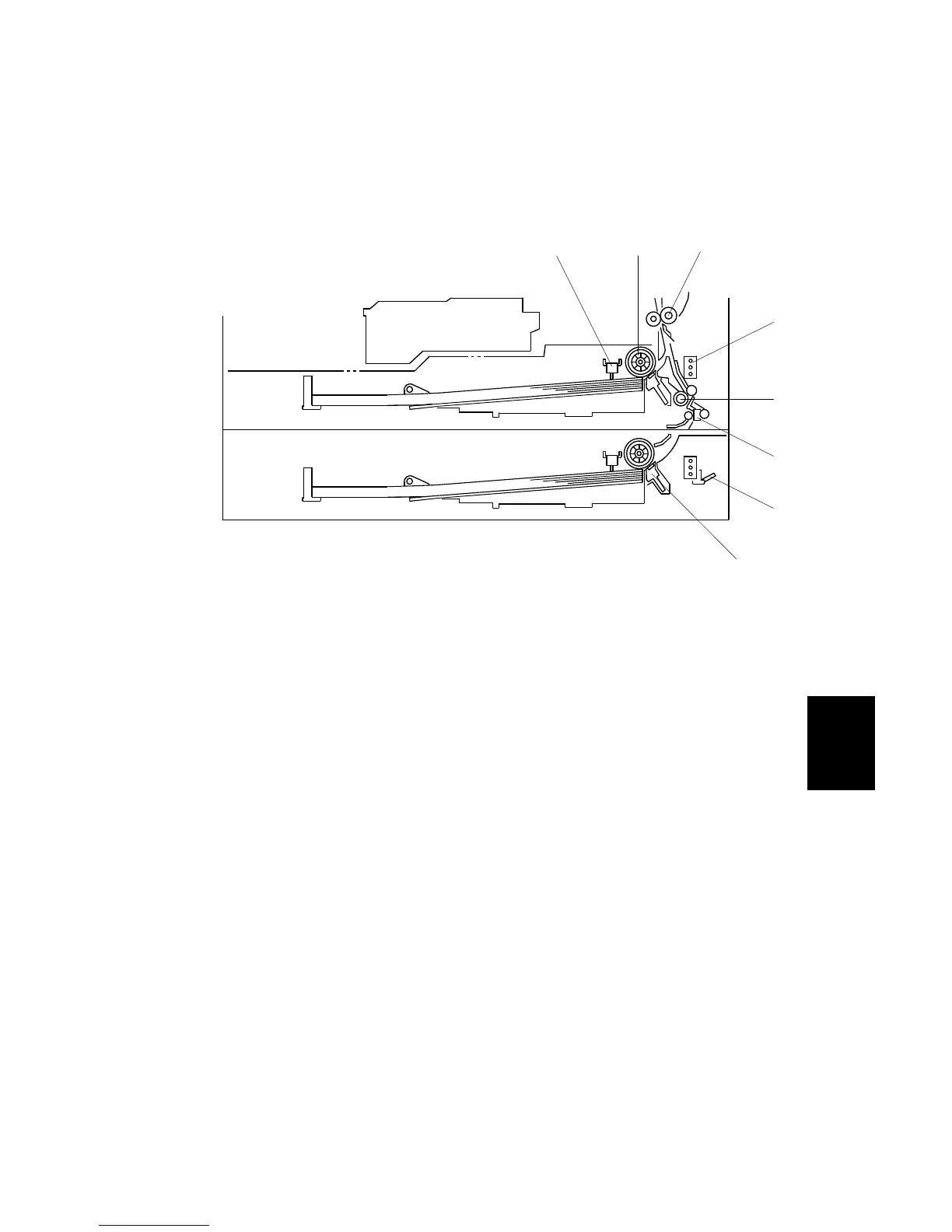

The components of the paper feed station are as follows.
1. Paper End Sensor
2. Paper Feed Roller
3. Registration Roller
4. Paper Size Switch
5. Upper Relay Roller
6. Upper Relay Sensor
7. Lower Relay Sensor
8. Friction Pad
B039D701.WMF
1
7
6
5
4
8
3
2
To Next Page
