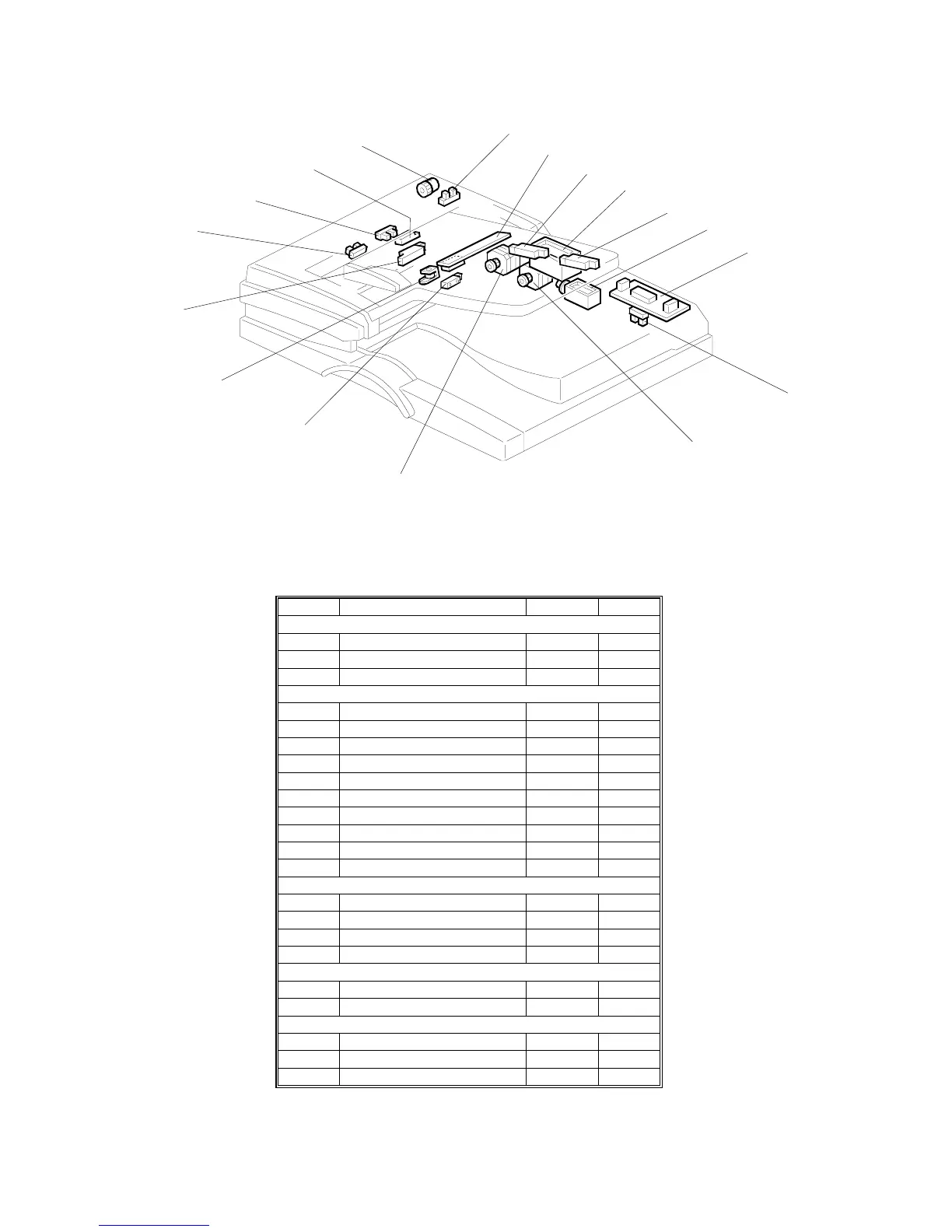

ELECTRICAL COMPONENT LAYOUT (B379)
B379D202.WMF
Symbol Name Index No. P-to-P
Motors
M1 DF Feed 10 H12
M2 DF Transport 11 H12
Sensors
S1 Original Exit 12 H14
S2 Original Reverse 16 H14
S3 Registration 17 H14
S4 Original Set 15 H14
S5 DF Position 9 H15
S6 Feed Cover Open 2 H15
S7 Original Length - 1 4 H15
S8 Original Length - 2 6 H16
S9 Original Trailing Edge 14 H16
Solenoids
SOL1 Stamp 13 H13
SOL2 DF Pick-up 5 H13
SOL3 Junction Gate 7 H13
Magnetic Clutches
MC1 DF Feed 1 H13
PCBs
PCB1 DF Drive Board 8 H12-16
PCB2 Original Width Sensor Board 3 H15
