Ricoh K-C1 User Manual

OTHER REPLACEMENTS 20 February, 2001
3-46
3.12.5 IOB (I/O BOARD)
1. BiCU (☛3.12.4)
2. IOB [A] (all connectors, ! x 6, 1 ribbon
cable)
3.12.6 MAIN MOTOR
1. Rear cover (☛ 3.3.1)
2. Main motor [B] (! x 4, " x 1)
3.12.7 REAR EXHAUST FAN
1. Rear cover (☛ 3.3.1)
2. Rear exhaust fan [C] (! x 2 , " x 1)

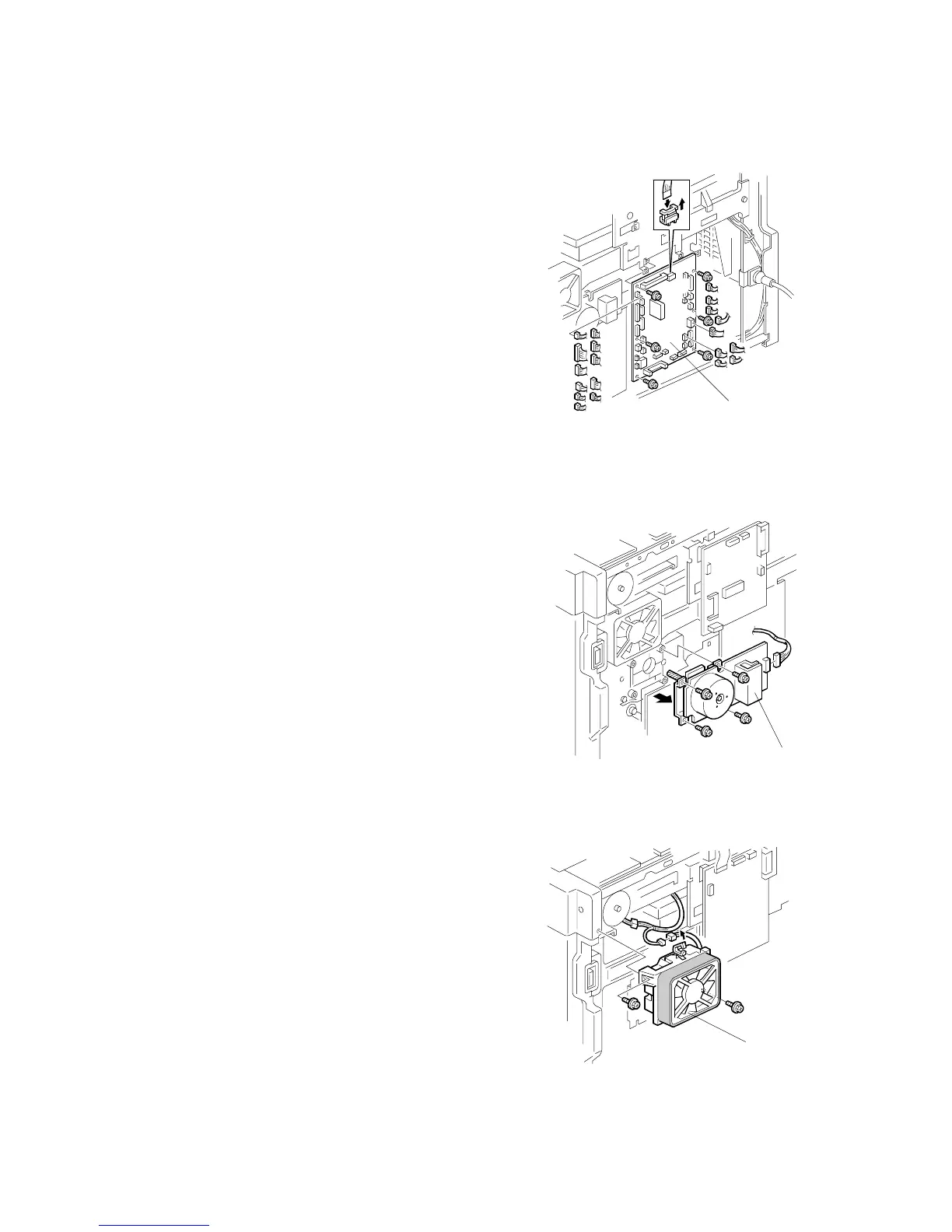

B039R910.WMF
B039R908.WMF
B039R918.WMF
[A]
[B]
[C]
