Controller Options
D117/D118 2-86 SM
USB Connectors
 These connectors (right and left) [B] are used for the Bluetooth interface unit or the external
USB keyboard (external option)
2.14.2 SD CARD APPLI MOVE
Overview
The service program "SD Card Appli Move" (SP5-873) lets you move application programs from
one SD card to another SD card.
If more than one application is required, the applications must be moved to one SD card with
SP5873-1 (VM card, PictBridge, Browser unit, etc.).
Be very careful when you do the SD Card Appli Move procedure:
 The data necessary for authentication is transferred with the application program from an SD
card to another SD card. Authentication fails if you try to use the SD card after you move the
application program from one card to another card.
 The SD card capacity of the optional VM card is 512 MB. That of other optional SD cards is
less than 128 MB. Therefore, files of the other applications must be moved to the VM card if
multiple application files should be merged. Any SD-card can be targeted for the application
merge if the VM card is not installed.
 Do not use the SD card if it has been used before for other purposes. Normal operation is not
guaranteed when such an SD card is used.
 The original application SD card should be stored using the following procedure.
1. Remove the paper tray.

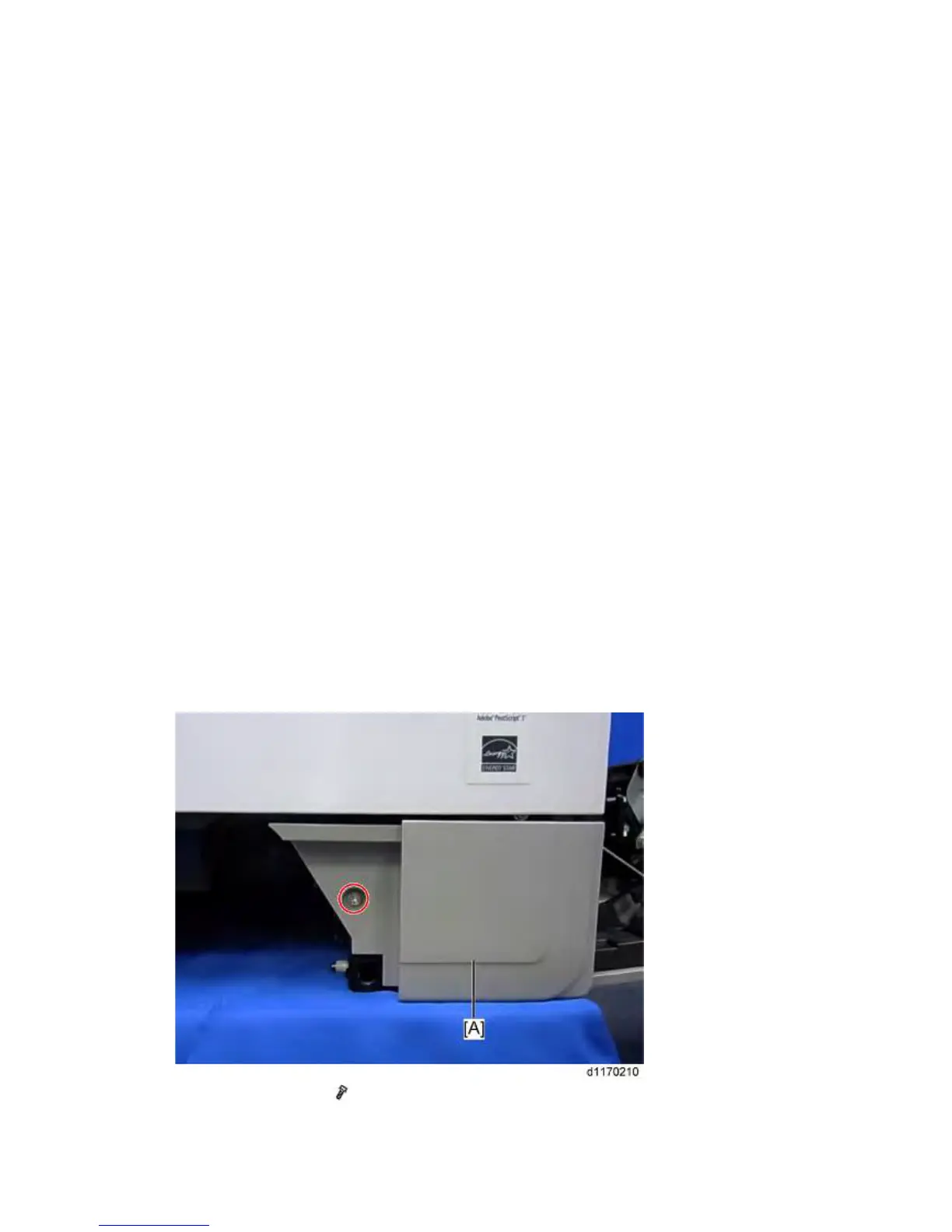

2. Remove the cover [A] (
x 1).
