Procedure

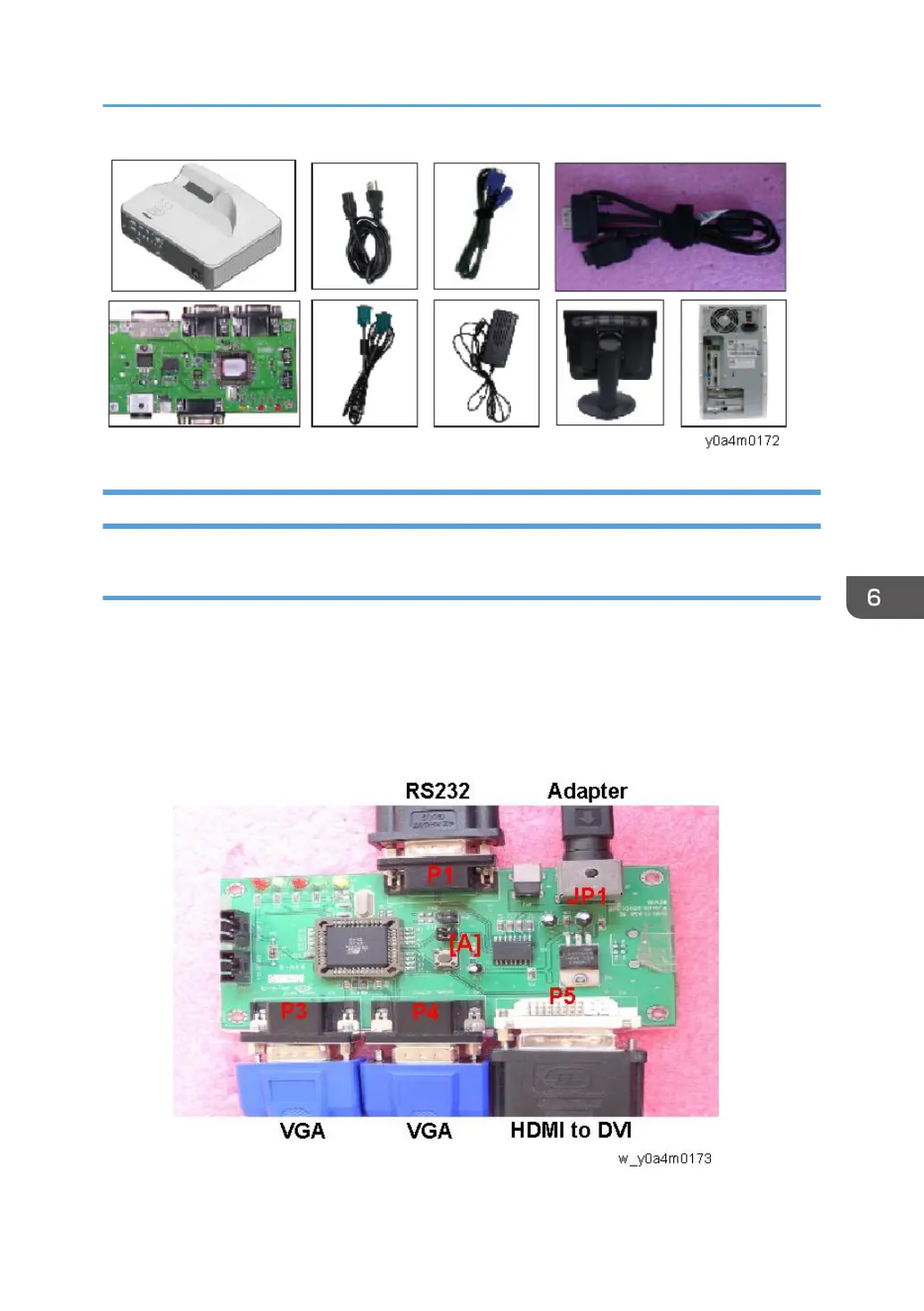

Setup Procedure (VGA&HDMI)
1. Connect all ports.
1. Connect P1 of Fixture Board [A] to COM Port of PC/Laptop with RS232 cable.
2. Connect P3&P4 of Fixture Board to VGA-in port of projector with VGA cable.
3. Connect P5 of Fixture Board to HDMI1 port of projector with HDMI to DVI cable.
4. Plug power adapter to JP1 of Fixture Board.
EDID Update
113
