Speaker

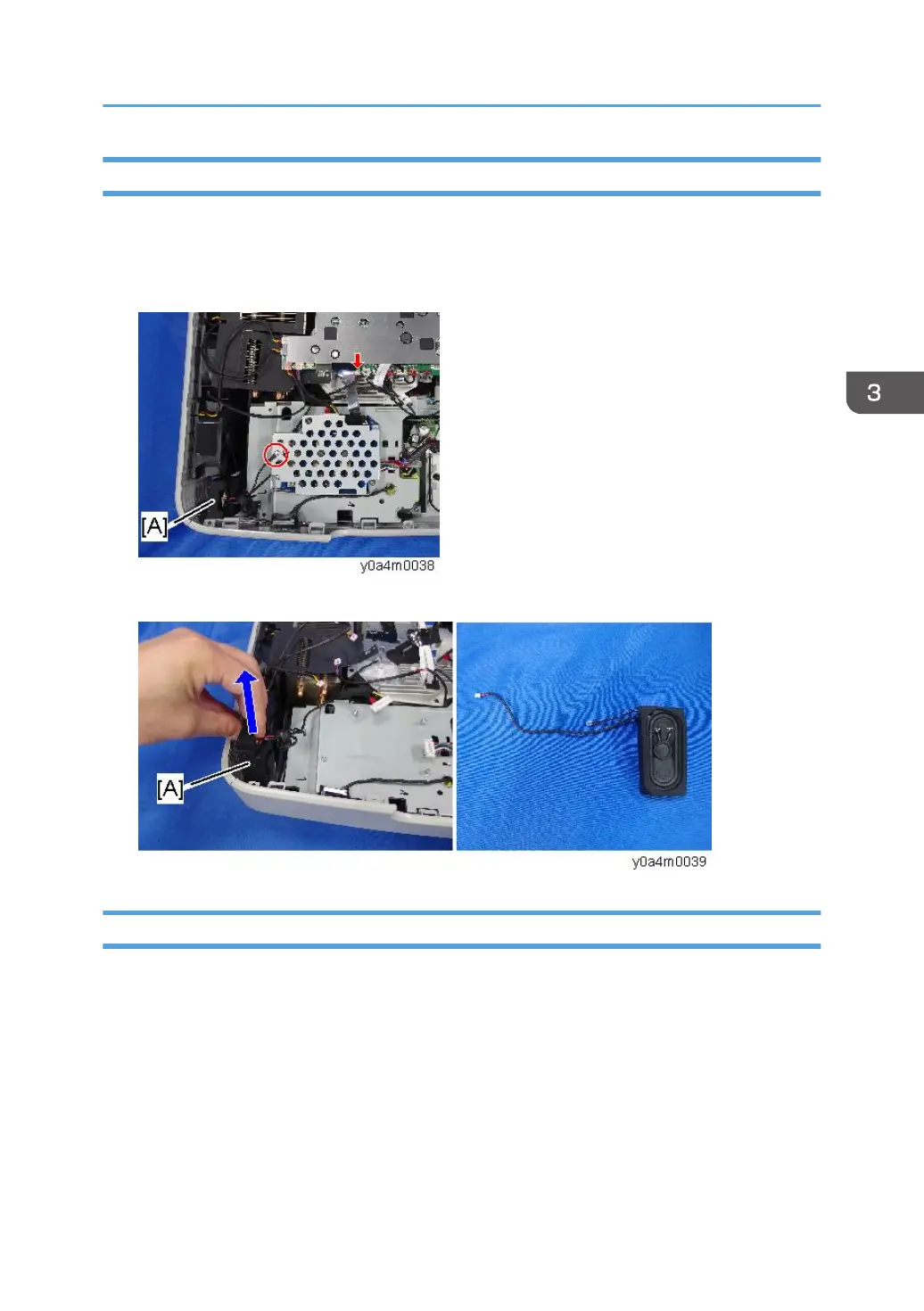

1. Top Cover (page 41)
2. Remove the ground wire screw and disconnect "SPK" connector on Main Board.!
([A]: Speaker)
3. Speaker [A]
Interlock Switch, PSU
1. Top Cover (page 41)
2. Front Cover (page 45)
3. LD Driver Board (page 56)
Part Replacement
57
