Ricoh PJ LX3000ST Field Service Manual

Front IR Sensor

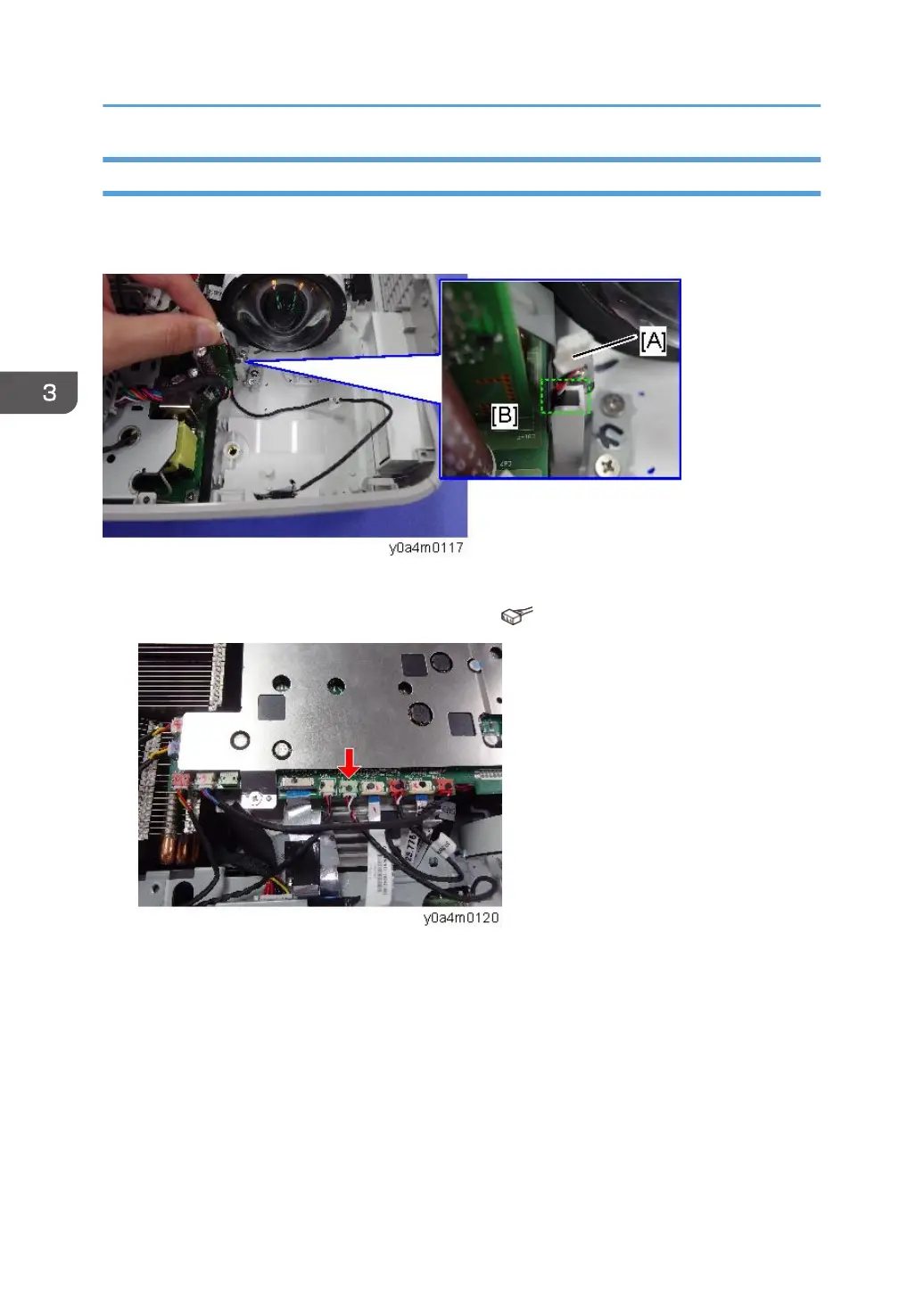

The connector [A] is too large to pass through between PSU [B] and harness guide. So first you have to
remove PSU.
1. Top Cover (page 41)
2. Disconnect the "F IR" connector on Main Board ( x1).
3. Front Cover (page 45)
4. LD Driver Board (page 56)
5. PSU (page 57)
3. Replacement
62
