Ricoh PJ LX3000ST Field Service Manual

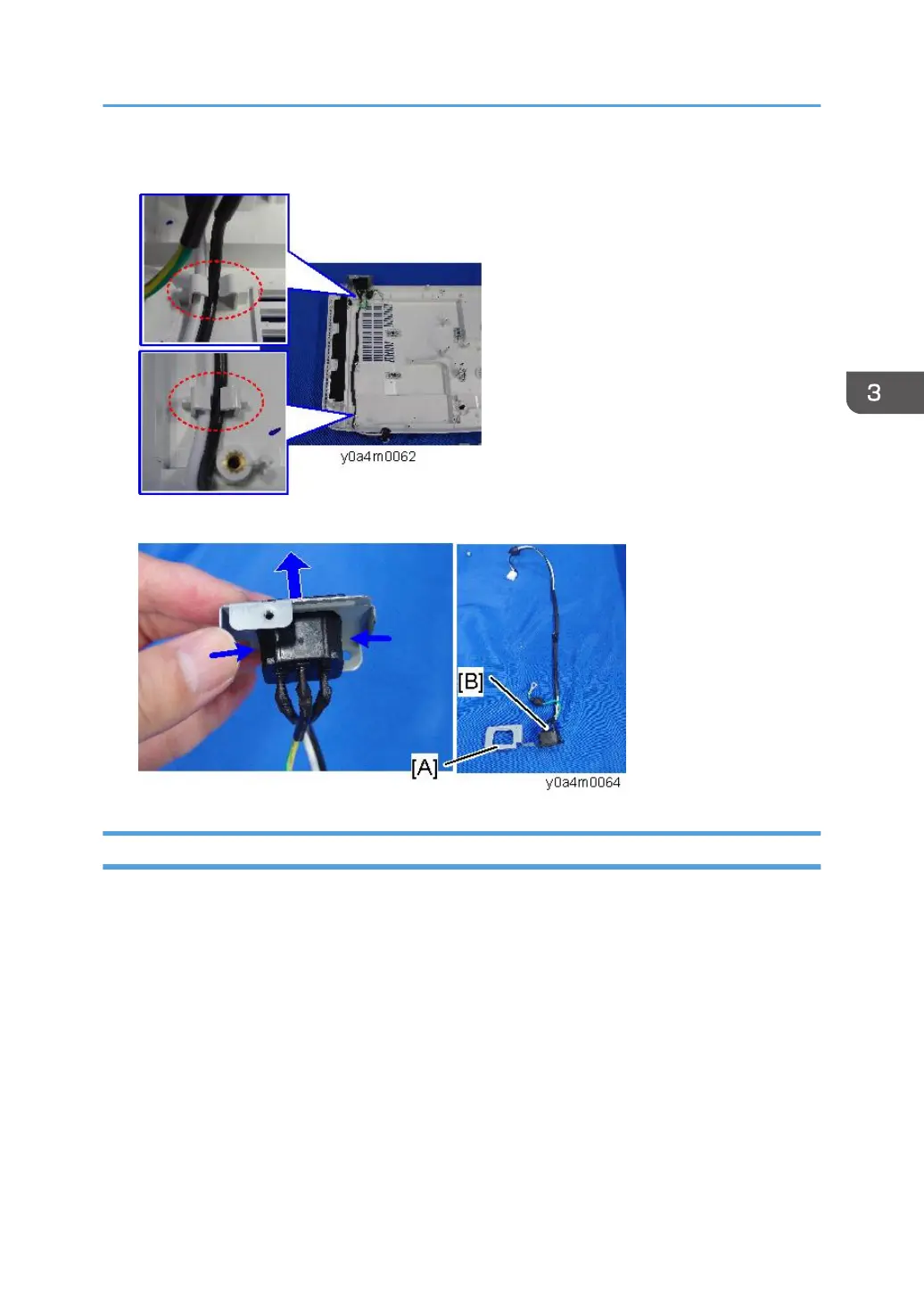

11. Remove the harness from the 2 hooks as shown;
12. Separate bracket [A] and Power Socket [B].
Adjustable Foot
There are three adjustable feet; there are 1 on the front and 2 on the rear.
1. Rotate the adjustable foot [A] counterclockwise and remove it.
No nut attached on the bolt so turn the Adjustable foot counterclockwise and remove it.
Part Replacement
69
