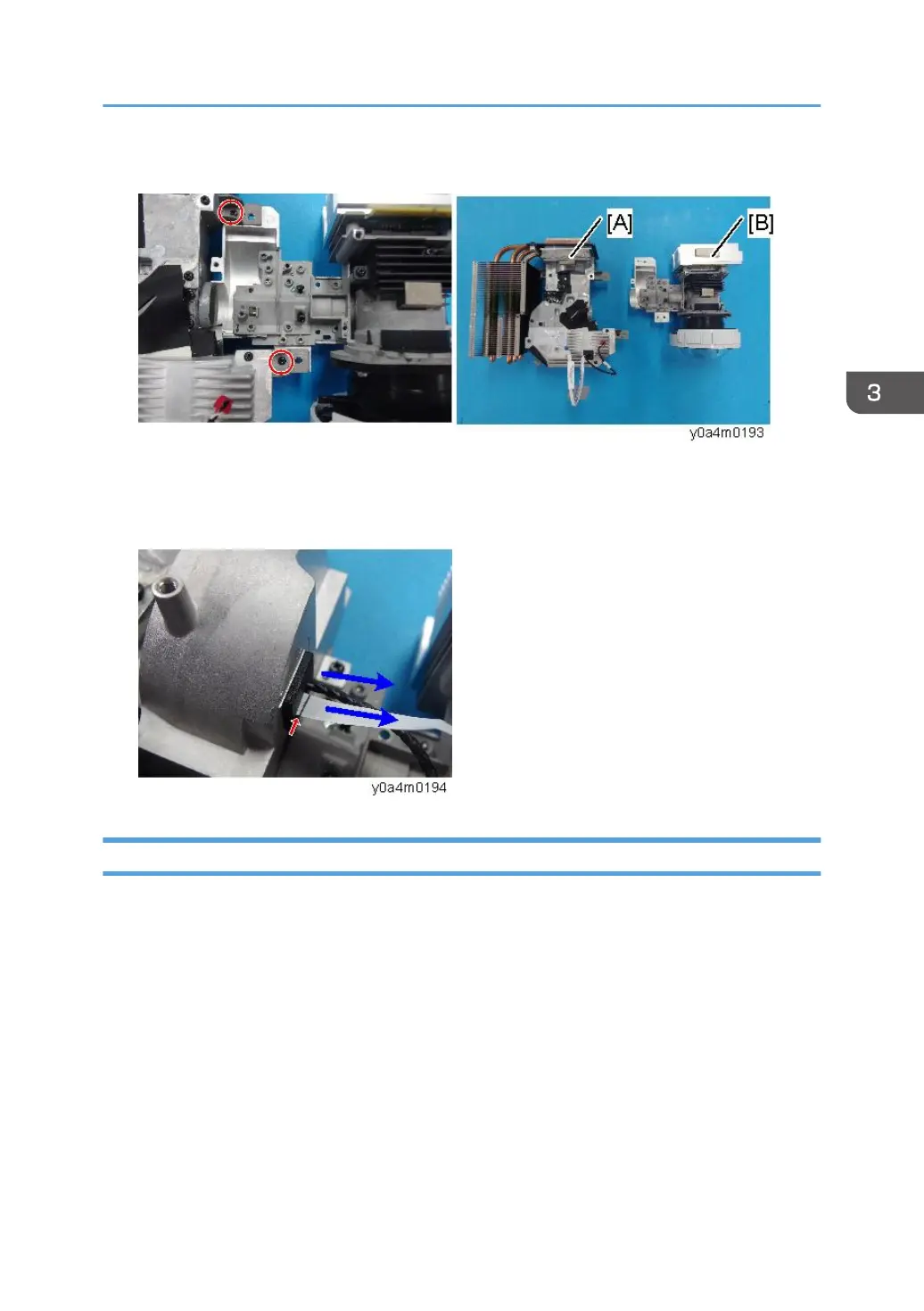

4. Separate the Combiner Unit [A] and Engine Module [B].
Notes on Attaching the Filter Wheel
After attaching the cover, pull out the FFC until the black line appears. If the FFC is loose inside the
cover, it might come into contact with the filter wheel, causing an error.
Power Socket
1. Exterior Covers (page 40)
2. Main Board (page 48)
3. IO Board, Audio Board (page 52)
4. Fan 1, 2, and 3 (page 53)
5. LD Driver Board (page 56)
6. PSU (page 57)
7. Optical Engine (page 63)
8. DMD Fan (page 63)
Part Replacement
