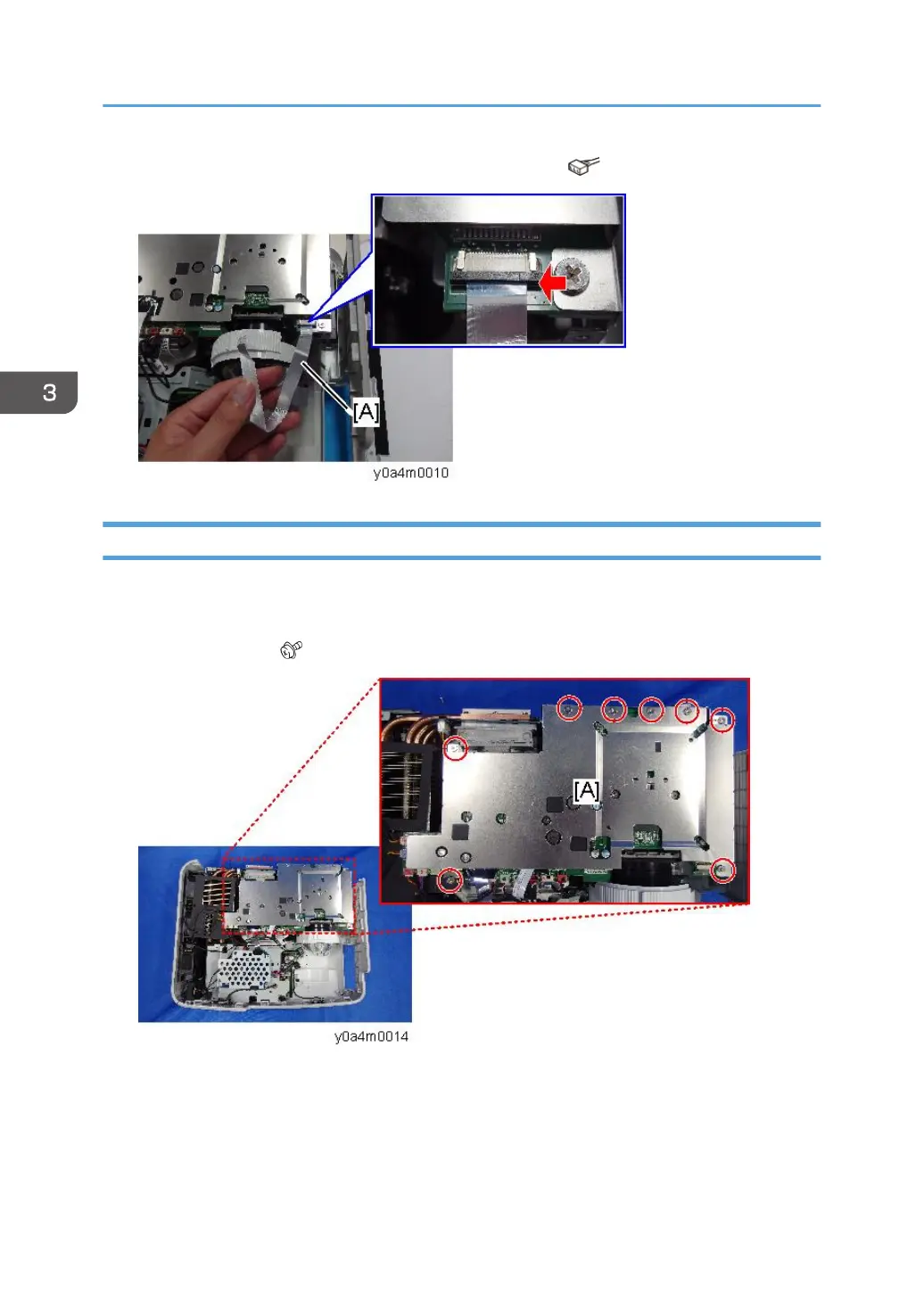

4. Remove the FFC [A] from Main Board to Keypad Board ( x1).
Main Board
1. Top Cover (page 41)
2. IO Cover (page 44)
3. Top Shielding [A] (
x8)
Make sure not to forget to peel off the black sheet [A] before removing the top shielding.
3. Replacement
48
