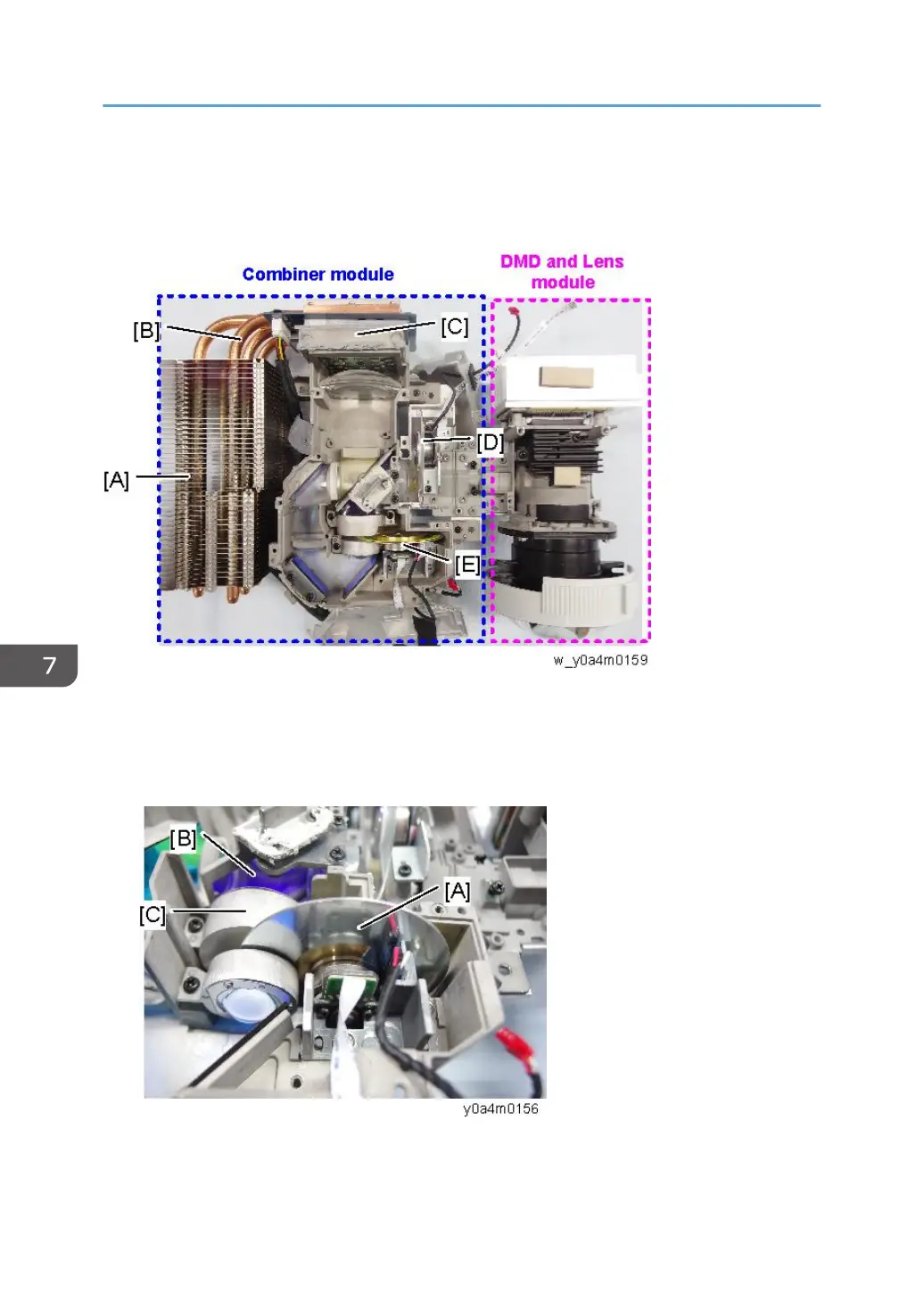

Combiner Module
Combiner module is comprised of the heat sink [A], heat pipe [B], laser bank [C], filter wheel [D],
and phosphor wheel [E].
Phosphor wheel
The phosphor wheel [A] is divided into 3 segments comprised of the blue transparency, yellow
phosphor, and green phosphor.
([B]: Dichroic mirror, [C]: Collimator)
Filter wheel
The filter wheel is located in front of the light tunnel.
7. Detailed Description
124
