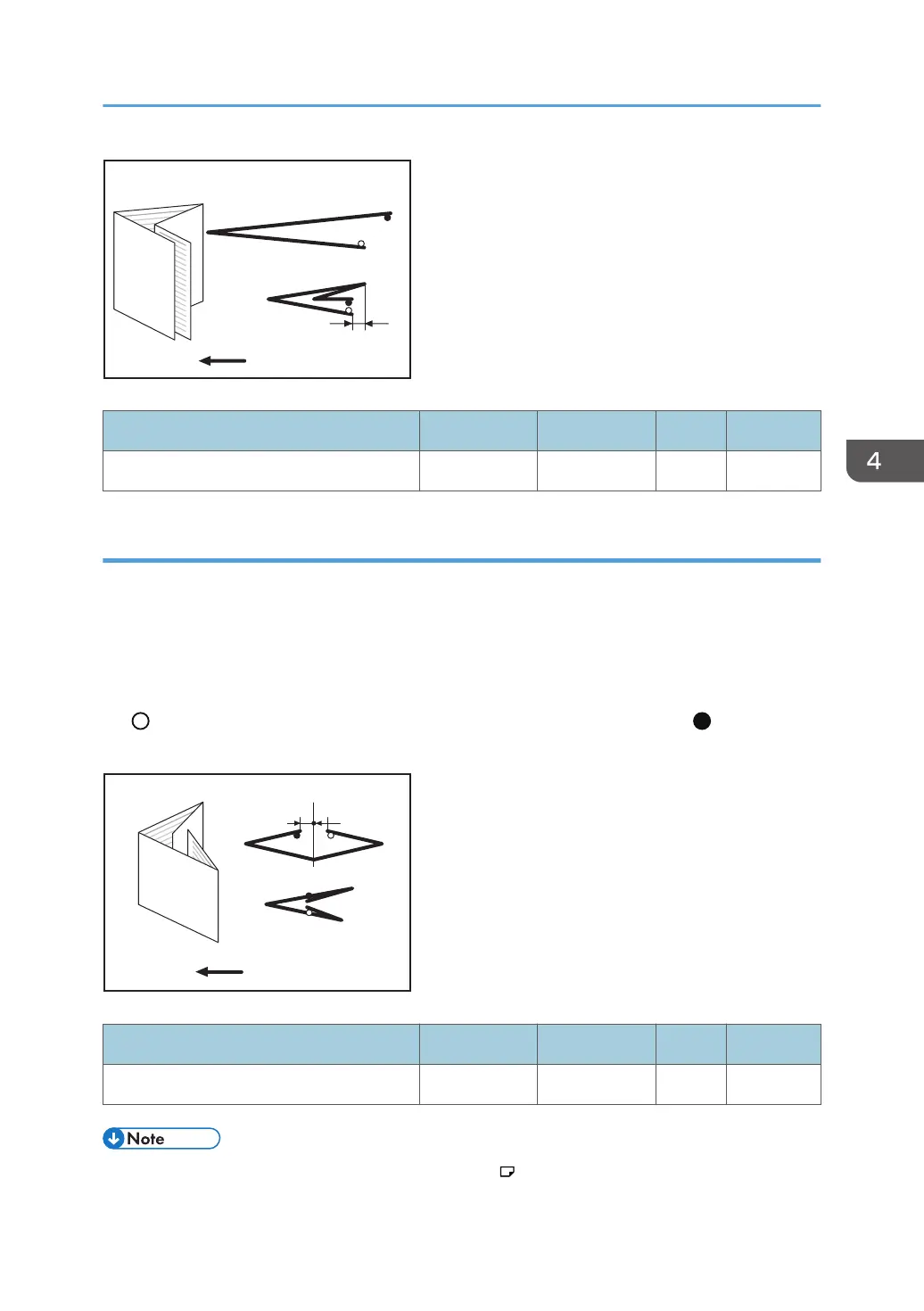

Ricoh Pro C5200s - Page 157

CEZ007
S2
L3
L4
L1
Paper feed direction
Setting Items Max. Value Min. Value Step Unit
[Double Parallel Fold Position 2] 4.0 -4.0 0.2 mm
116: [Gate Fold Position 1]
Adjust the fold width of the bottom segment 1 (S1) of gate folded sheets when using the multi-folding
unit.
Press [+] to increase (S1) and [−] to reduce it.
The upper right illustration shows a partly opened, gate folded sheet, and the lower right illustration
shows a fully folded sheet.
The mark indicates the leading edge (relative to the paper feed direction), and the mark indicates
the trailing edge.
CEZ008
L3
L3
S1
Paper feed direction
Setting Items Max. Value Min. Value Step Unit
[Gate Fold Position 1] 4.0 -4.0 0.2 mm
• You cannot specify this setting when using 12" × 18" paper.
Setting Values
155
