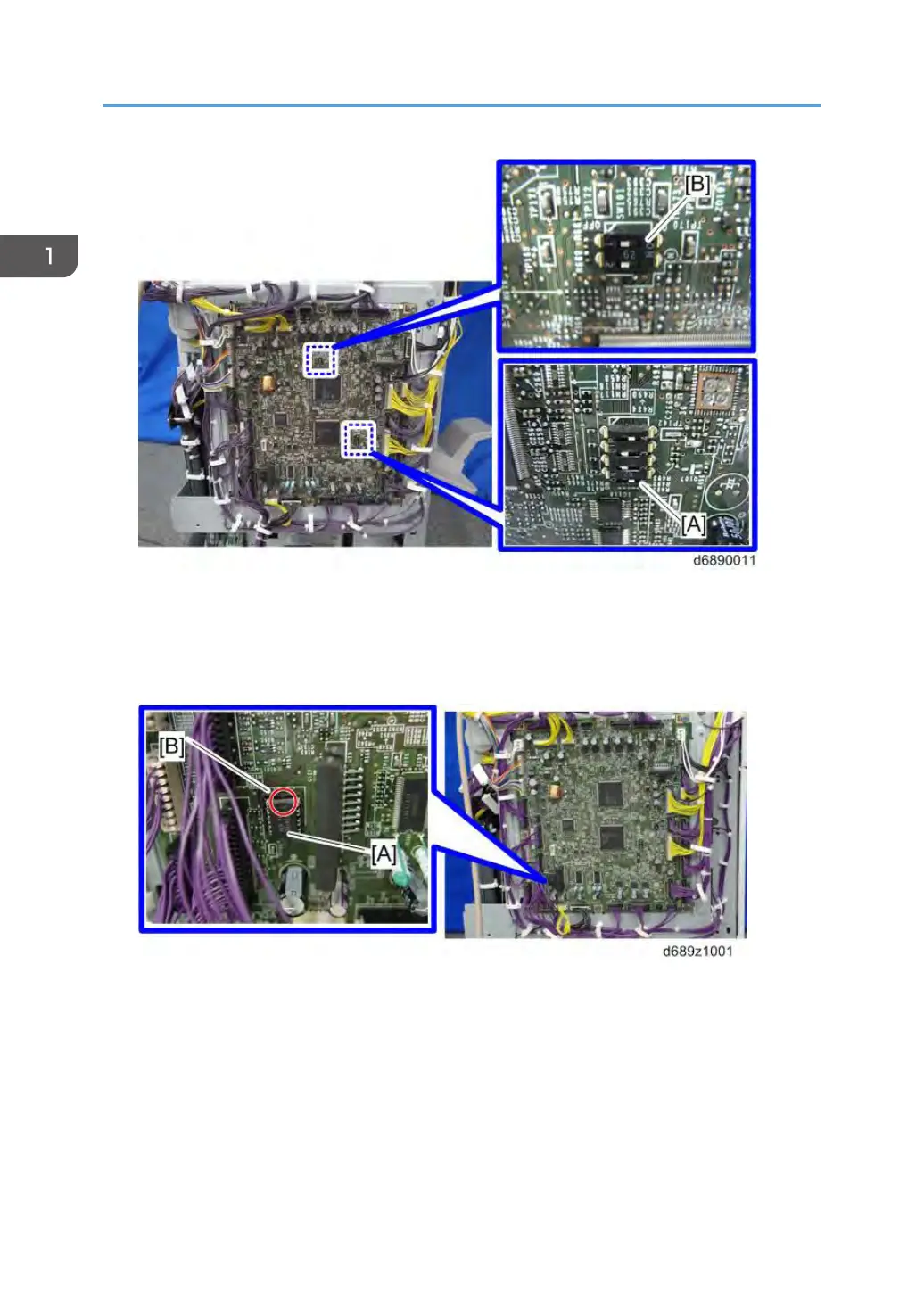

5. Remove the EEPROM [A] from the old main board.
6.
Install the EEPROM [A] on the new main board.
• Make sure the EEPROM is correctly installed on the main board. Insert the EEPROM in the slot
with the "half-moon" [B] pointing to the upward side.
