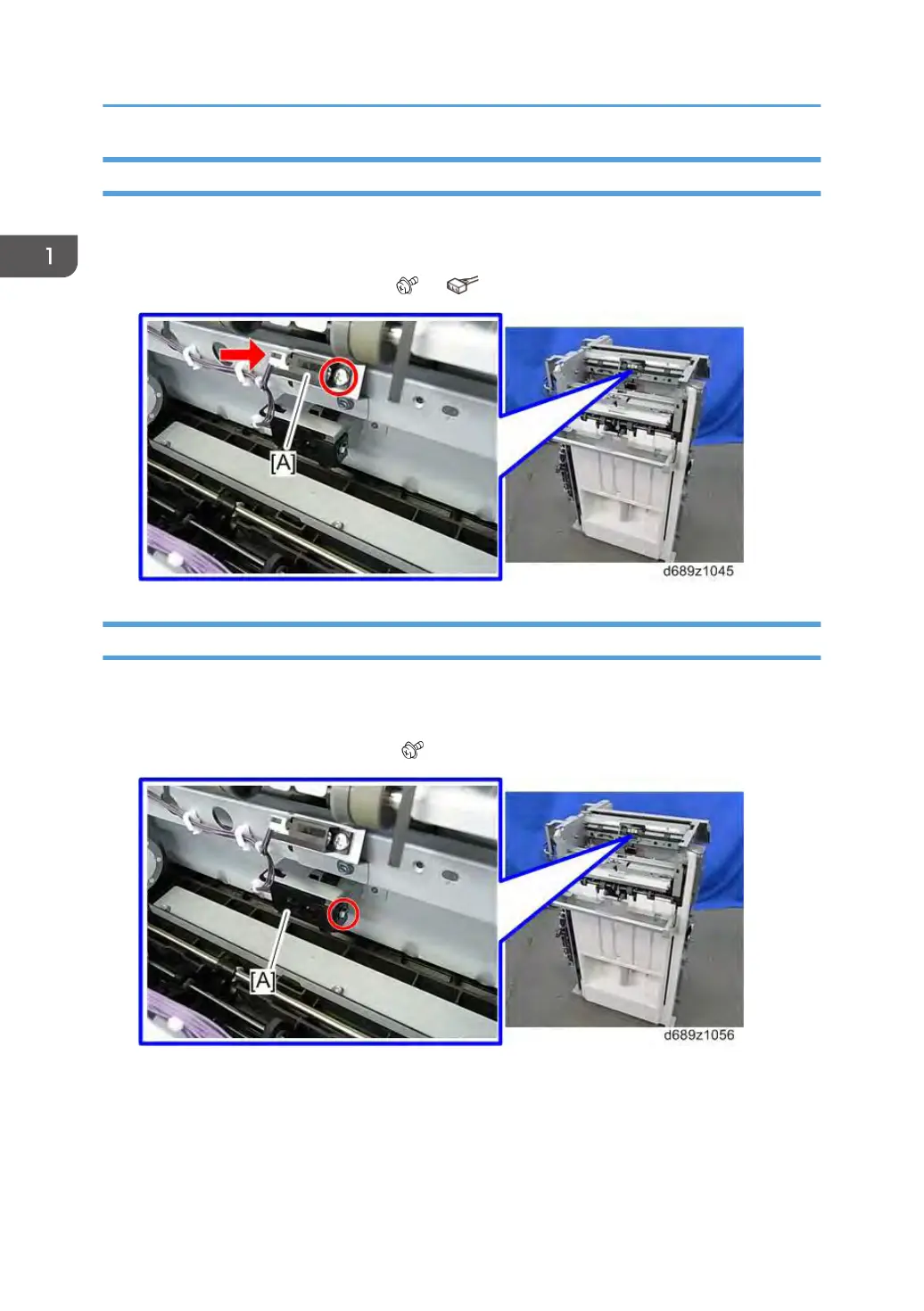

Proof Tray Full Sensor
1. Upper cover (page 7)
2. Proof tray (page 12)
3. Proof tray full sensor bracket [A] ( ×1, ×1)
Proof Tray Exit Sensor
1. Rear upper cover (page 7)
2. Proof tray (page 12)
3. Proof tray exit sensor bracket [A] ( ×1)
1. Replacement and Adjustment
52
