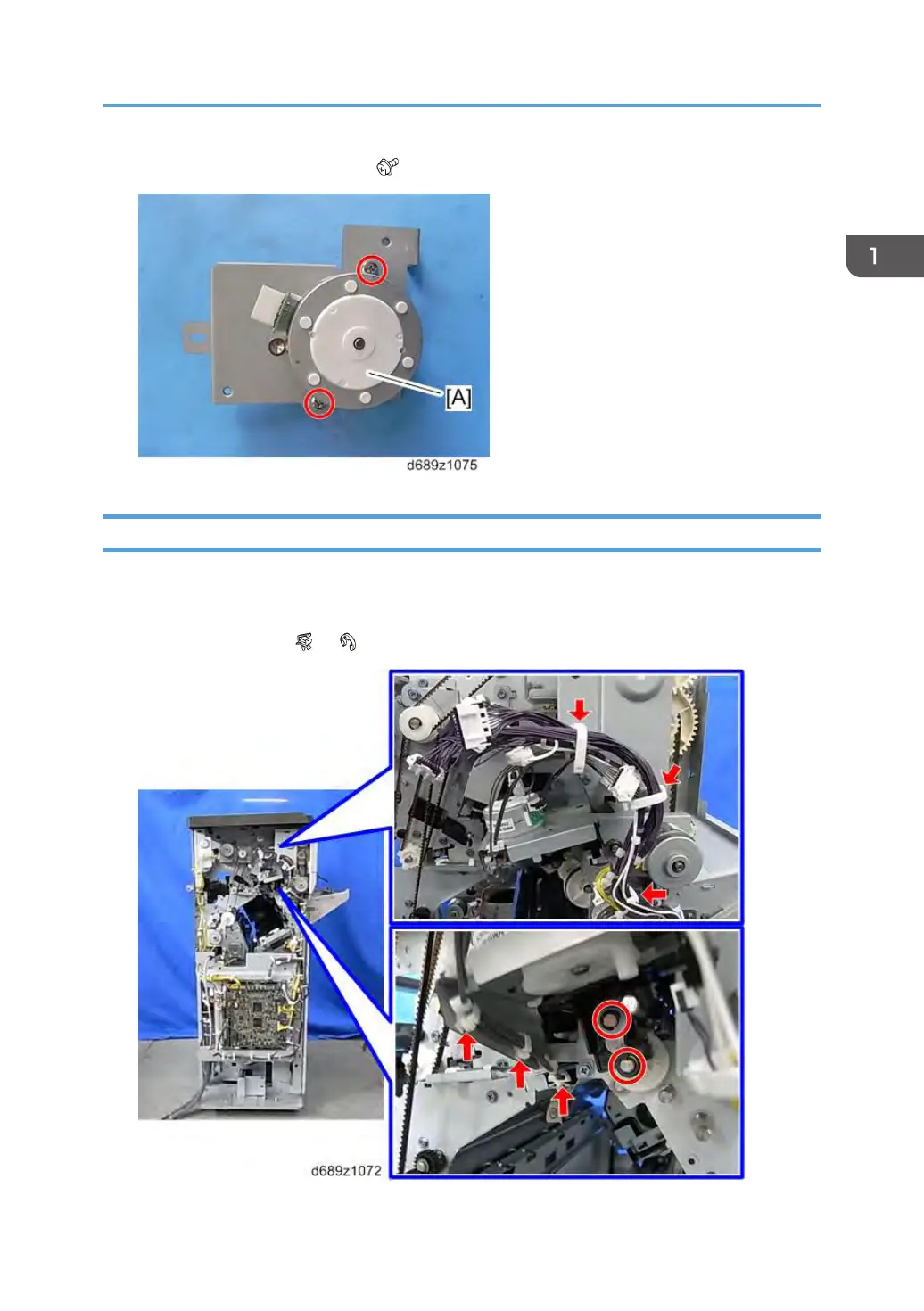

6. Lower junction gate motor [A] ( ×2)
Shift Motor / Lower Junction Gate HP Sensor / Shift Roller HP Sensor
1. Rear upper cover (page 7)
2. Upper cover (page 7)
3. Clamps and E-rings ( ×6, ×2)
Main Unit
