Ricoh SR3170 - Press Folding Motor

Press Folding Motor
1. Booklet unit (page 60)

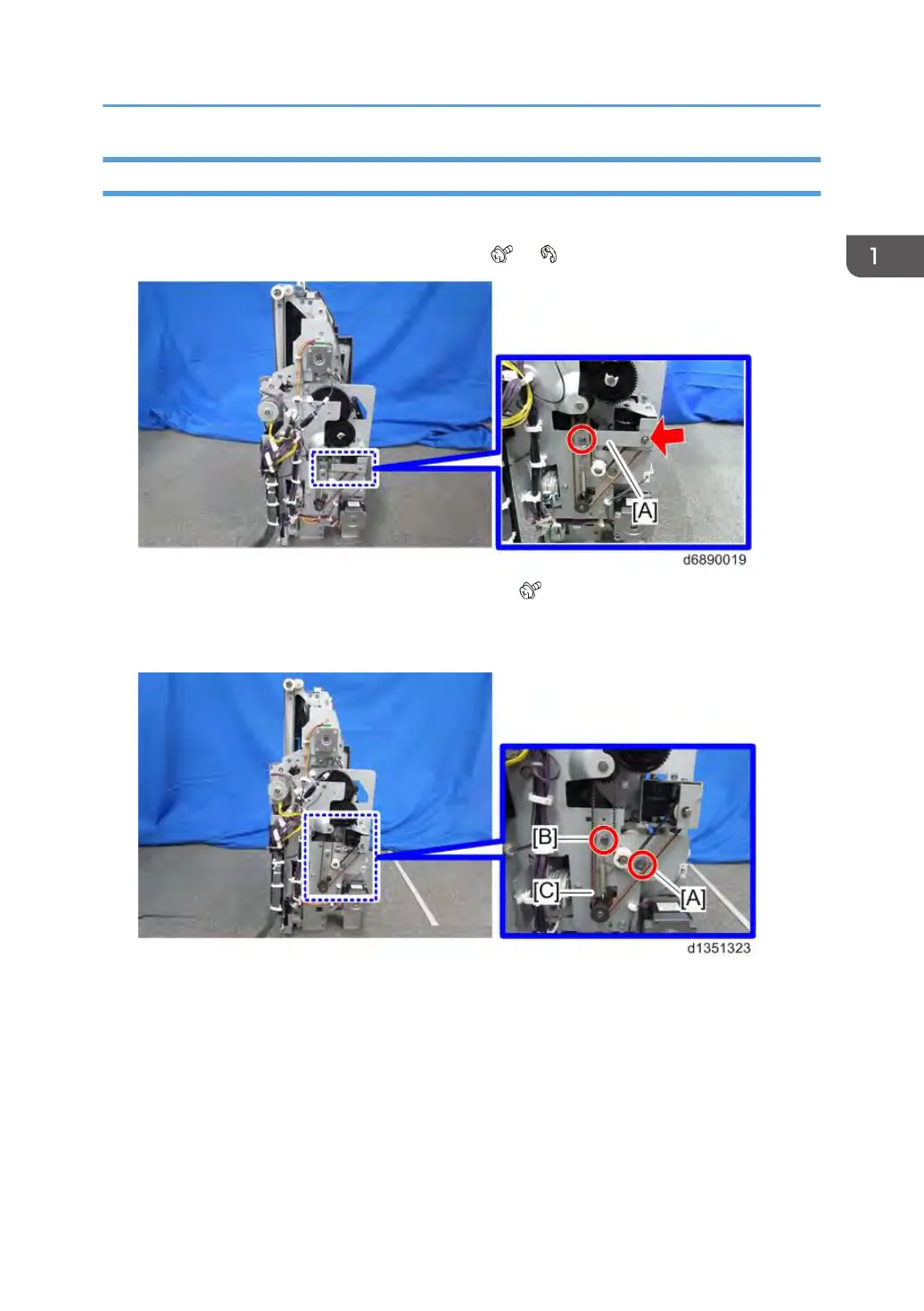

2. Remove the bracket [A] from the booklet unit ( ×1, ×1)
3. Remove the screw [A] of the belt holding bracket ( ×1)
4. Loosen the screw [B] of the belt holding bracket, and then loosen the press folding motor
belt [C].
Booklet Unit (D688 Only)
63
