Ricoh SR3170 - Tray Upper Limit Switch

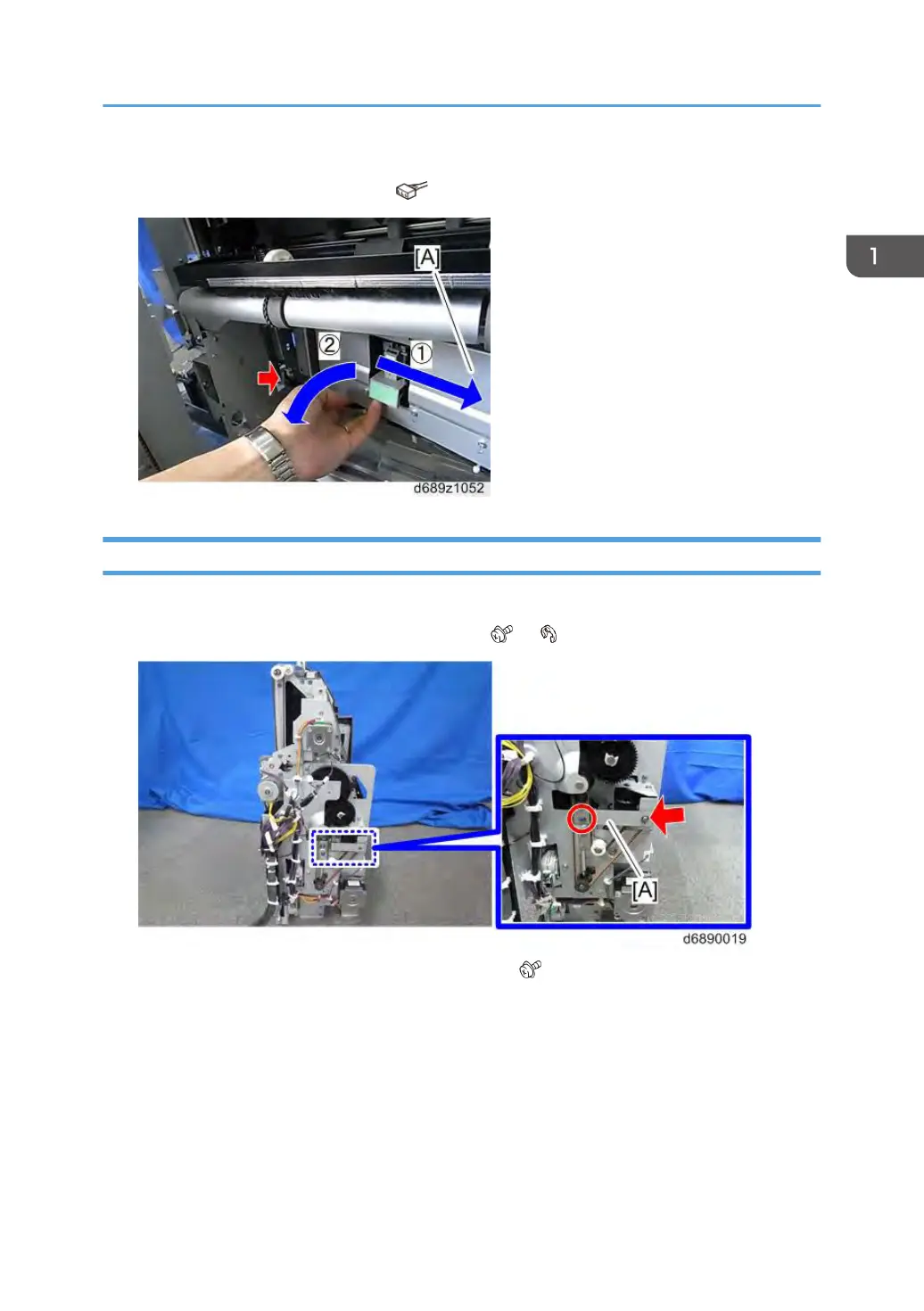

3. Remove Booklet stapler motor unit [A] while sliding it to the front side and then pulling it
out from the rear part of the unit. ( ×1)
Tray Upper Limit Switch
1. Booklet unit (page 60)
2. Remove the bracket [A] from the booklet unit ( ×1, ×1)
3. Remove the screw [A] of the belt holding bracket ( ×1)
Booklet Unit (D688 Only)
71
