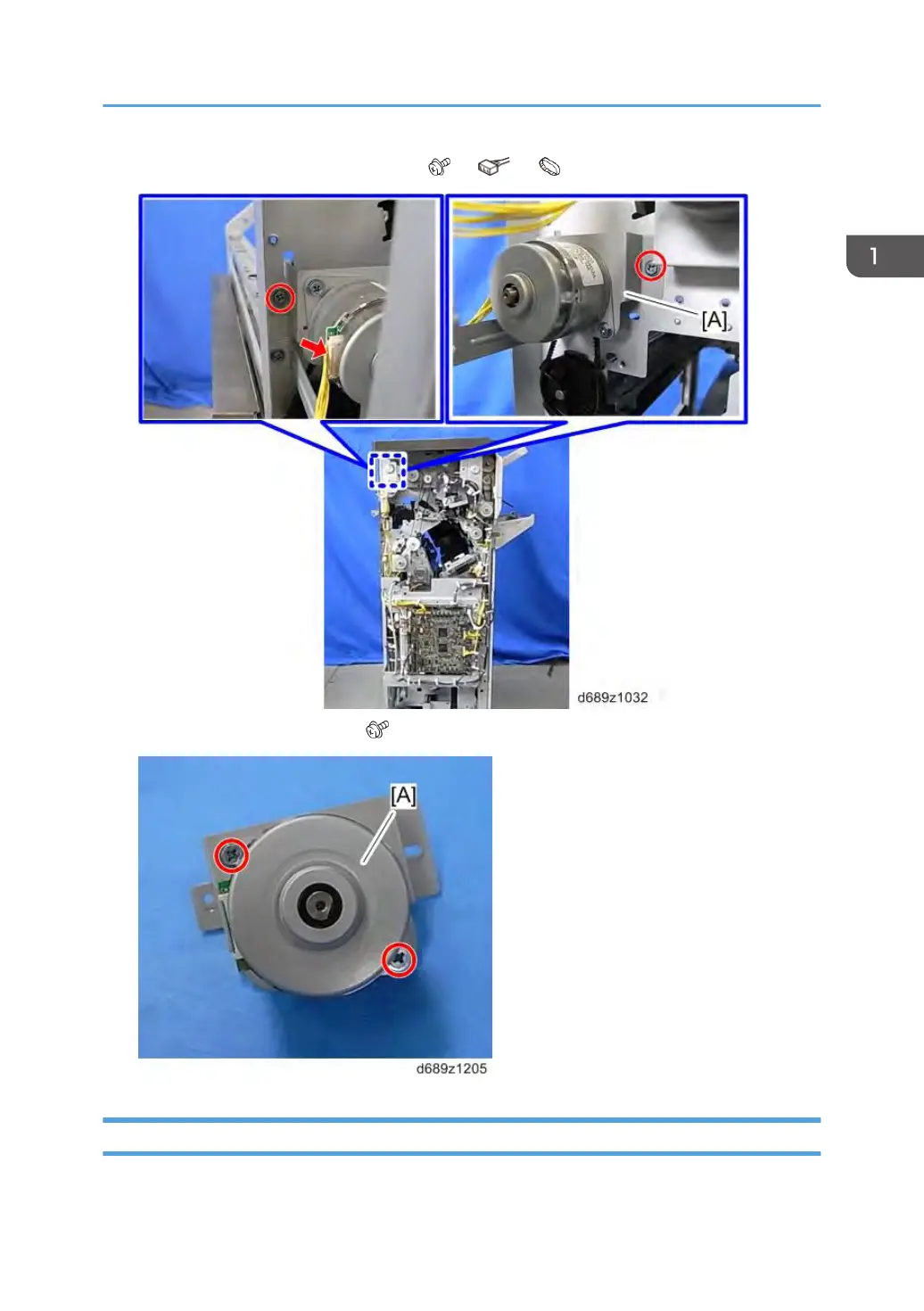

2. Entrance transport motor bracket [A] ( ×2, ×1, ×1)
3. Entrance transport motor [A] ( ×2)
Horizontal Transport Motor
1. Rear upper cover (page 7)
Main Unit
41
