Main Unit

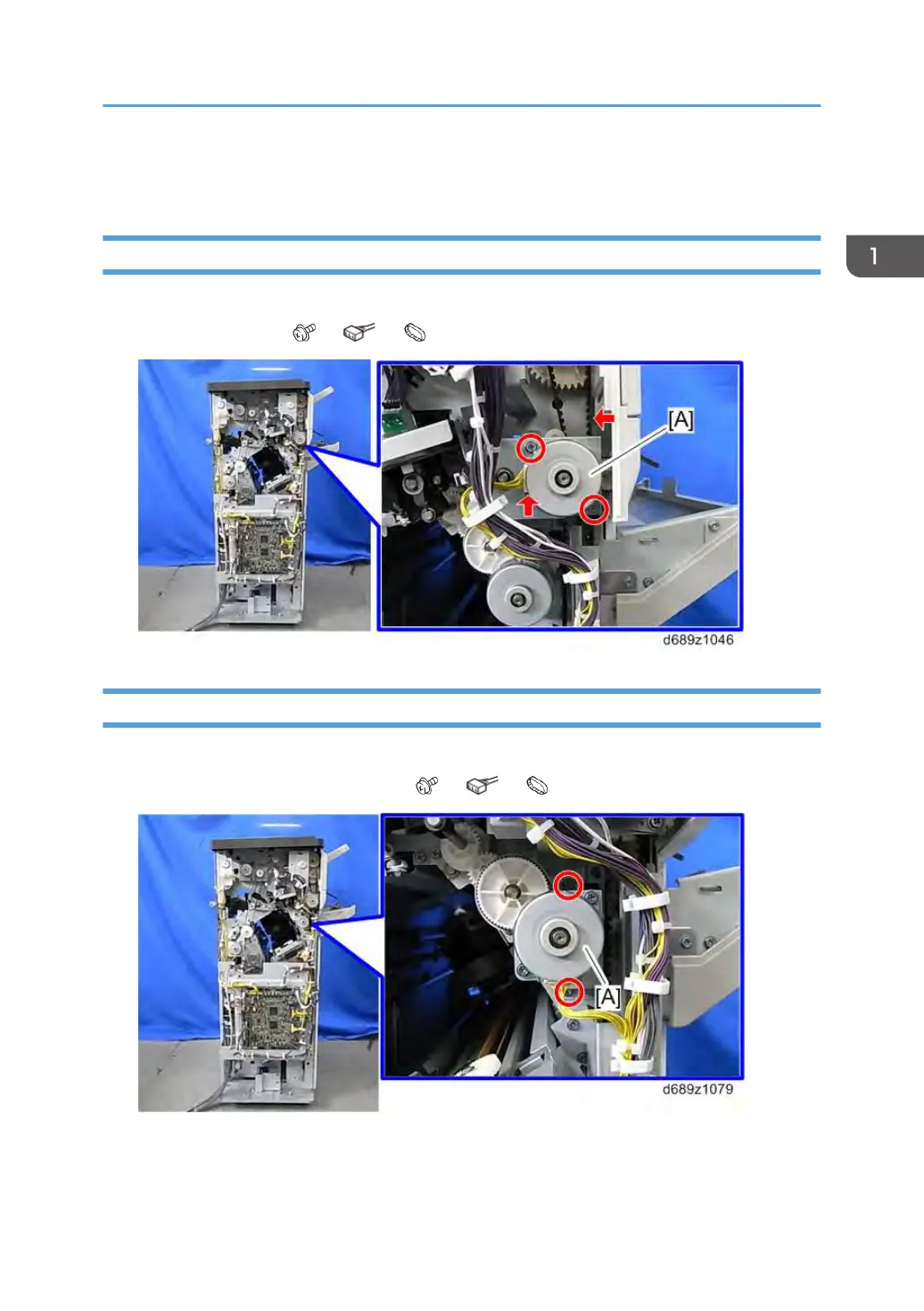

Tray Exit Motor
1. Rear upper cover (page 7)
2. Tray exit motor [A] ( ×2, ×1, ×1)
Middle Transport Motor
1. Rear upper cover (page 7)
2. Middle transport motor bracket [A] ( ×2, ×1, ×1)
Main Unit
39
